NFPA Cylinders
How to order the cylinder
H - MF5 - 3.25 X 1.38 X 25.25 - N - 1 - S - 11 - S
Series
H
Mount
MX1, MX2, MX3, ME5, ME6, MF1, MF2, MF5, MF6, MS2, MS3, MS4, MS7, MT1, MT2, MT4, MP1
Bore
1.50, 2.00, 2.50, 3.25, 4.00, 5.00, 6.00, 7.00, 8.00, 10.00, 12.00, 14.00, 16.00, 18.00, 20.00 inches
Rod
0.63, 1.00, 1.38, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00, 5.50, 7.00, 8.00, 9.00, 10.00 inches
Stroke
In the example, 25.25 inches.
Cushion
- N — None
- H — Head end
- C — Cap end
- B — Both ends

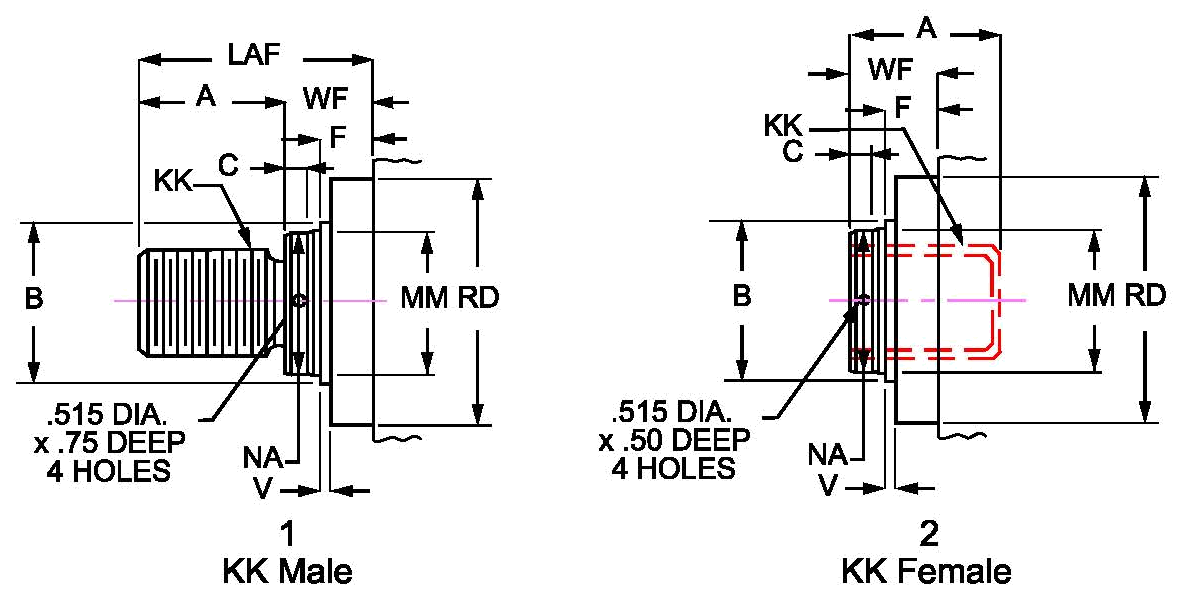

Rod end
- 1 — Male KK
- 2 — Female KK
- 3 — Intermediate male CC
Ports
- S — SAE
- N — NPTF

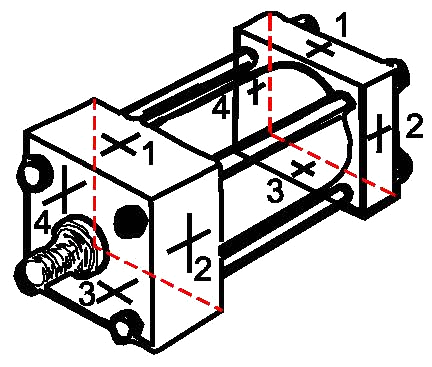

Port location — 11
In the example, 11 means position 1 at the head end and position 1 at the cap end. The first digit is the head end and the second is the cap end.
Head end: 1, 2, 3, 4
Cap end: 1, 2, 3, 4
Options
- S — Standard
- X — Modified
Every modification must include complete notes or drawings.
Standard specifications
- Nominal pressure: 3000 PSI*
- Bores: 1 1/2" to 8"
- Rods: 5/8" to 5 1/2"
- Mounting styles: 17 standard styles***
- Strokes: available in any practical stroke length
- Cushion: optional at either end or both
- Standard: screwed gland assembly, removable from the outside
- Standard temperature: −10 °F to +200 °F**
* If the pressure is 3000 to 4000 PSI or higher, state it when ordering.
** If the temperature is 200 to 400 °F or higher, state it when ordering.
*** Drawings are supplied for all other mounting styles and specials.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | AA | BB | DD | FH | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 2.3 | 1 3/8 | 3/8-24 | 3/8 | 1.63 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 2.9 | 11 3/16 | 1/2-20 | 5/8 | 2.05 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 3.6 | 11 3/16 | 1/2-20 | 5/8 | 2.55 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 4.6 | 2 5/16 | 5/8-18 | 3/4 | 3.25 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 5.4 | 2 5/16 | 5/8-18 | 7/8 | 3.82 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 7.0 | 3 3/16 | 7/8-14 | 7/8 | 4.95 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 8.1 | 3 5/8 | 1-14 | 1 | 5.73 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 9.3 | 4 1/8 | 1 1/8-12 | 1 | 6.58 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 10.6 | 4 1/2 | 1 1/4-12 | 1 | 7.5 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | RM | VB | W | Y | ZT* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 1 15/16 | 1/4 | 5/8 | 2 15/32 | 7 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 1/2 | 1 | 2 15/32 | 7 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 1/4 | 3/4 | 2 15/32 | 7 13/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 1 | 2 23/32 | 8 1/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 1/4 | 3/4 | 2 15/32 | 7 15/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 1 | 2 23/32 | 8 3/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 1/2 | 1 1/4 | 2 31/32 | 8 7/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 1/4 | 7/8 | 2 23/32 | 9 7/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 3/8 | 1 1/8 | 2 31/32 | 9 11/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 3/8 | 1 1/4 | 3 3/32 | 9 13/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 1/4 | 1 | 2 31/32 | 9 15/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 1/4 | 1 1/8 | 3 3/32 | 10 1/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 3/8 | 1 3/8 | 3 11/32 | 10 5/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 1/4 | 1 1/8 | 3 3/32 | 11 7/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 3/8 | 1 3/8 | 3 11/32 | 11 11/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 3/8 | 1 3/8 | 3 11/32 | 11 11/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 3/8 | 1 3/8 | 3 11/32 | 11 11/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 1/4 | 1 1/4 | 3 19/32 | 13 1/4 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 1/4 | 1 1/4 | 3 19/32 | 13 1/4 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 1/4 | 1 1/4 | 3 19/32 | 13 1/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 1/4 | 1 1/4 | 3 19/32 | 13 1/4 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 1/4 | 1 1/4 | 3 15/16 | 14 7/8 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 1/4 | 1 1/4 | 3 15/16 | 14 7/8 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 1/4 | 1 1/4 | 3 15/16 | 14 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 1/4 | 1 1/4 | 3 15/16 | 14 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 1/4 | 1 1/4 | 3 15/16 | 14 7/8 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 1/4 | 1 1/4 | 4 1/16 | 16 1/4 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 1/4 | 1 1/4 | 4 1/16 | 16 1/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 1/4 | 1 1/4 | 4 1/16 | 16 1/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 1/4 | 1 1/4 | 4 1/16 | 16 1/4 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 7 15/16 | 1/4 | 1 1/4 | 4 1/16 | 16 1/4 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | AA | BB | DD | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 2.3 | 1 3/8 | 3/8-24 | 1.63 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 2.9 | 11 3/16 | 1/2-20 | 2.05 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 3.6 | 11 3/16 | 1/2-20 | 2.55 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 4.6 | 2 5/16 | 5/8-18 | 3.25 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 5.4 | 2 5/16 | 5/8-18 | 3.82 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 7.0 | 3 3/16 | 7/8-14 | 4.95 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 8.1 | 3 5/8 | 1-14 | 5.73 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 9.3 | 4 1/8 | 1 1/8-12 | 6.58 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 10.6 | 4 1/2 | 1 1/4-12 | 7.5 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | RM | F | V | WF | Y | ZT* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 1 15/16 | 3/8 | 1/4 | 1 | 2 15/32 | 7 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 1/2 | 1 3/8 | 2 15/32 | 7 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 1/4 | 1 3/8 | 2 15/32 | 7 13/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 3/8 | 1 5/8 | 2 23/32 | 8 1/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 3/8 | 1 3/8 | 2 15/32 | 7 15/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 3/8 | 1 5/8 | 2 23/32 | 8 3/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 1/2 | 1 7/8 | 2 31/32 | 8 7/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 13/32 | 1 5/8 | 2 23/32 | 9 7/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 3/8 | 1 7/8 | 2 31/32 | 9 11/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 3/8 | 2 | 3 3/32 | 9 13/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 17/32 | 1 7/8 | 2 31/32 | 9 15/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 17/32 | 2 | 3 3/32 | 10 1/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 21/32 | 2 1/4 | 3 11/32 | 10 5/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 17/32 | 2 | 3 3/32 | 11 7/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 21/32 | 2 1/4 | 3 11/32 | 11 11/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 17/32 | 2 1/4 | 3 11/32 | 11 11/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 2 1/4 | 3 11/32 | 11 11/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 21/32 | 2 1/4 | 3 19/32 | 13 1/4 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 17/32 | 2 1/4 | 3 19/32 | 13 1/4 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 2 1/4 | 3 19/32 | 13 1/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 3/8 | 2 1/4 | 3 19/32 | 13 1/4 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 17/32 | 2 1/4 | 3 15/16 | 14 7/8 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 2 1/4 | 3 15/16 | 14 7/8 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 3/8 | 2 1/4 | 3 15/16 | 14 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 15/16 | 3/8 | 2 1/4 | 3 15/16 | 14 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 15/16 | 3/8 | 2 1/4 | 3 15/16 | 14 7/8 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 2 1/4 | 4 1/16 | 16 1/4 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 3/8 | 2 1/4 | 4 1/16 | 16 1/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 15/16 | 3/8 | 2 1/4 | 4 1/16 | 16 1/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 15/16 | 3/8 | 2 1/4 | 4 1/16 | 16 1/4 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 7 15/16 | 15/16 | 3/8 | 2 1/4 | 4 1/16 | 16 1/4 |
* Add the stroke to the dimension marked with an asterisk.

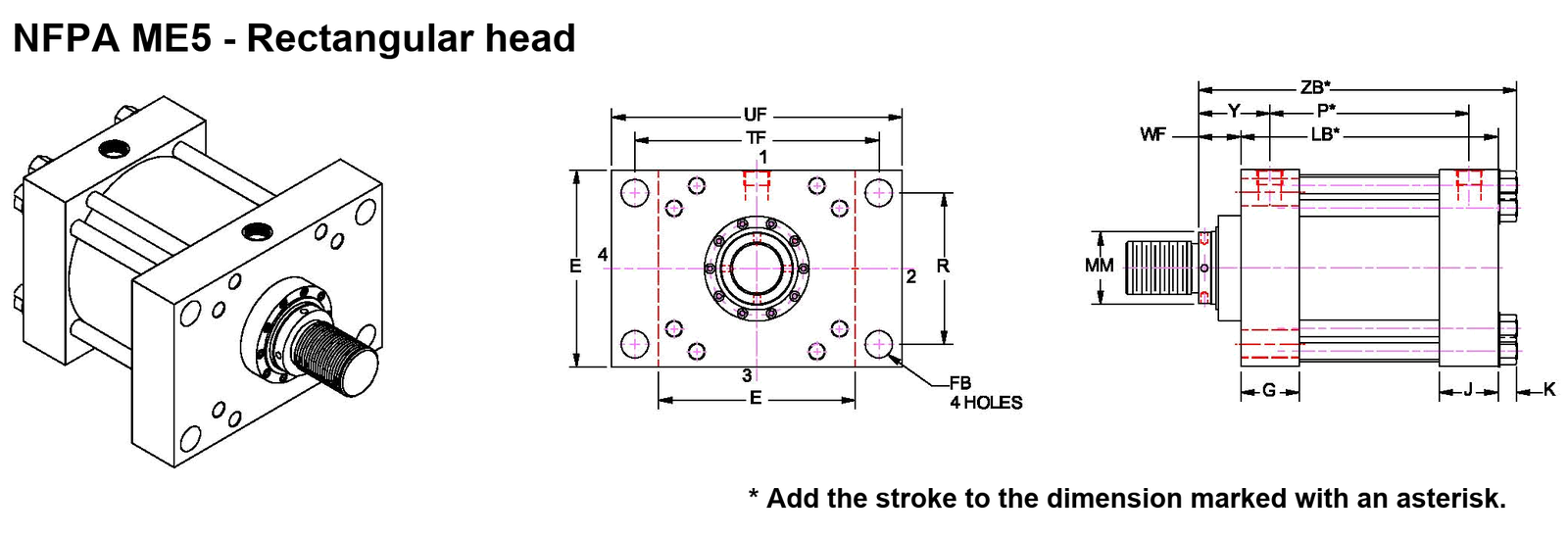

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | FB | R | TF | UF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 7/16 | 1.63 | 3 7/16 | 4 1/4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 9/16 | 2.05 | 4 1/8 | 5 1/8 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 9/16 | 2.55 | 4 5/8 | 5 5/8 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 11/16 | 3.25 | 5 7/8 | 7 1/8 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 11/16 | 3.82 | 6 3/8 | 7 5/8 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 15/16 | 4.95 | 8 3/16 | 9 3/4 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 1 1/16 | 5.73 | 9 7/16 | 11 1/4 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 1 3/16 | 6.58 | 10 5/8 | 12 5/8 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 1 5/16 | 7.5 | 11 13/16 | 14 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | RM | F | V | WF | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 1 15/16 | 3/8 | 1/4 | 1 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 1/2 | 1 3/8 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 1/4 | 1 3/8 | 2 15/32 | 6 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 3/8 | 1 5/8 | 2 23/32 | 6 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 3/8 | 1 3/8 | 2 15/32 | 6 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 3/8 | 1 5/8 | 2 23/32 | 6 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 1/2 | 1 7/8 | 2 31/32 | 7 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 13/32 | 1 5/8 | 2 23/32 | 7 11/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 3/8 | 1 7/8 | 2 31/32 | 7 15/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 3/8 | 2 | 3 3/32 | 8 1/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 17/32 | 1 7/8 | 2 31/32 | 8 3/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 17/32 | 2 | 3 3/32 | 8 5/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 21/32 | 2 1/4 | 3 11/32 | 8 9/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 17/32 | 2 | 3 3/32 | 9 1/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 21/32 | 2 1/4 | 3 11/32 | 9 5/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 17/32 | 2 1/4 | 3 11/32 | 9 5/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 2 1/4 | 3 11/32 | 9 5/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 21/32 | 2 1/4 | 3 19/32 | 10 9/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 17/32 | 2 1/4 | 3 19/32 | 10 9/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 2 1/4 | 3 19/32 | 10 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 3/8 | 2 1/4 | 3 19/32 | 10 9/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 17/32 | 2 1/4 | 3 15/16 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 2 1/4 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 3/8 | 2 1/4 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 15/16 | 3/8 | 2 1/4 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 15/16 | 3/8 | 2 1/4 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 2 1/4 | 4 1/16 | 12 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 3/8 | 2 1/4 | 4 1/16 | 12 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 15/16 | 3/8 | 2 1/4 | 4 1/16 | 12 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 15/16 | 3/8 | 2 1/4 | 4 1/16 | 12 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 7 15/16 | 15/16 | 3/8 | 2 1/4 | 4 1/16 | 12 7/8 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | FB | R | TF | UF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 7/16 | 1.63 | 3 7/16 | 4 1/4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 9/16 | 2.05 | 4 1/8 | 5 1/8 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 9/16 | 2.55 | 4 5/8 | 5 5/8 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 11/16 | 3.25 | 5 7/8 | 7 1/8 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 11/16 | 3.82 | 6 3/8 | 7 5/8 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 15/16 | 4.95 | 8 3/16 | 9 3/4 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 1 1/16 | 5.73 | 9 7/16 | 11 1/4 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 1 3/16 | 6.58 | 10 5/8 | 12 5/8 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 1 5/16 | 7.5 | 11 13/16 | 14 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | RM | F | V | Y | ZJ* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 1 15/16 | 3/8 | 1/4 | 2 15/32 | 5 5/8 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 1/2 | 2 15/32 | 6 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 1/4 | 2 15/32 | 6 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 3/8 | 2 23/32 | 6 1/4 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 3/8 | 2 15/32 | 6 1/8 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 3/8 | 2 23/32 | 6 3/8 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 1/2 | 2 31/32 | 6 5/8 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 13/32 | 2 23/32 | 7 1/8 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 3/8 | 2 31/32 | 7 3/8 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 3/8 | 3 3/32 | 7 1/2 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 17/32 | 2 31/32 | 7 5/8 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 17/32 | 3 3/32 | 7 3/4 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 21/32 | 3 11/32 | 8 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 17/32 | 3 3/32 | 8 1/4 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 21/32 | 3 11/32 | 8 1/2 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 17/32 | 3 11/32 | 8 1/2 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 3 11/32 | 8 1/2 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 21/32 | 3 19/32 | 9 5/8 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 17/32 | 3 19/32 | 9 5/8 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 3 19/32 | 9 5/8 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 3/8 | 3 19/32 | 9 5/8 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 17/32 | 3 15/16 | 10 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 3 15/16 | 10 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 3/8 | 3 15/16 | 10 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 15/16 | 3/8 | 3 15/16 | 10 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 15/16 | 3/8 | 3 15/16 | 10 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 17/32 | 4 1/16 | 11 3/4 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 3/8 | 4 1/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 15/16 | 3/8 | 4 1/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 15/16 | 3/8 | 4 1/16 | 11 3/4 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 7 15/16 | 15/16 | 3/8 | 4 1/16 | 11 3/4 |

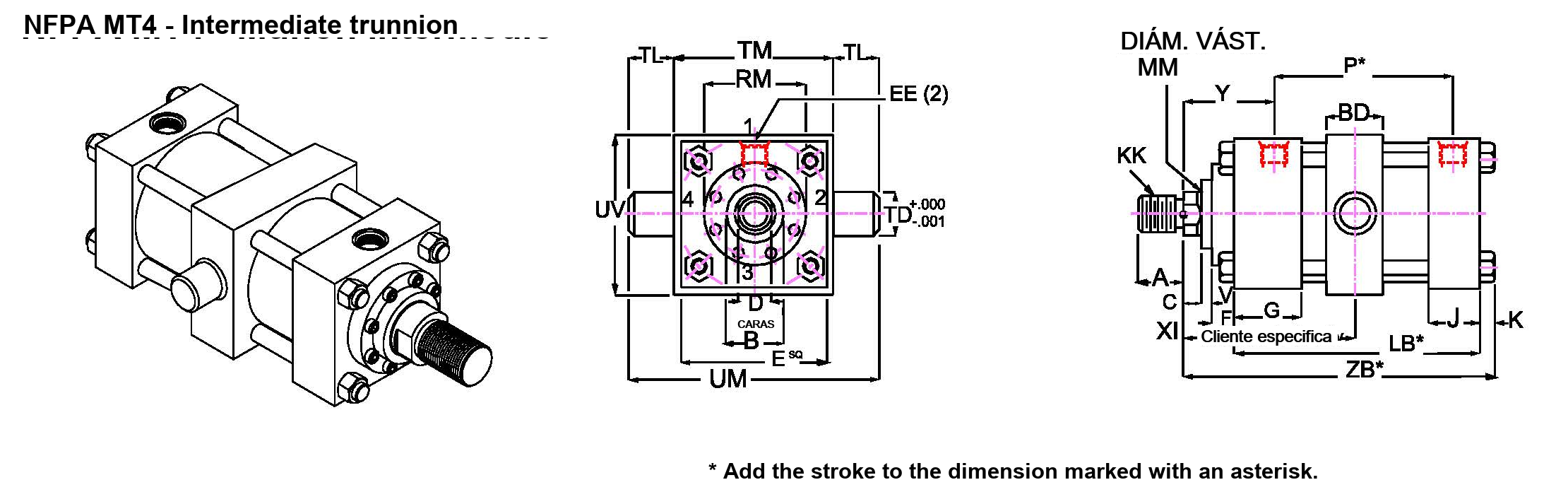

* Add the stroke to the dimension marked with an asterisk.

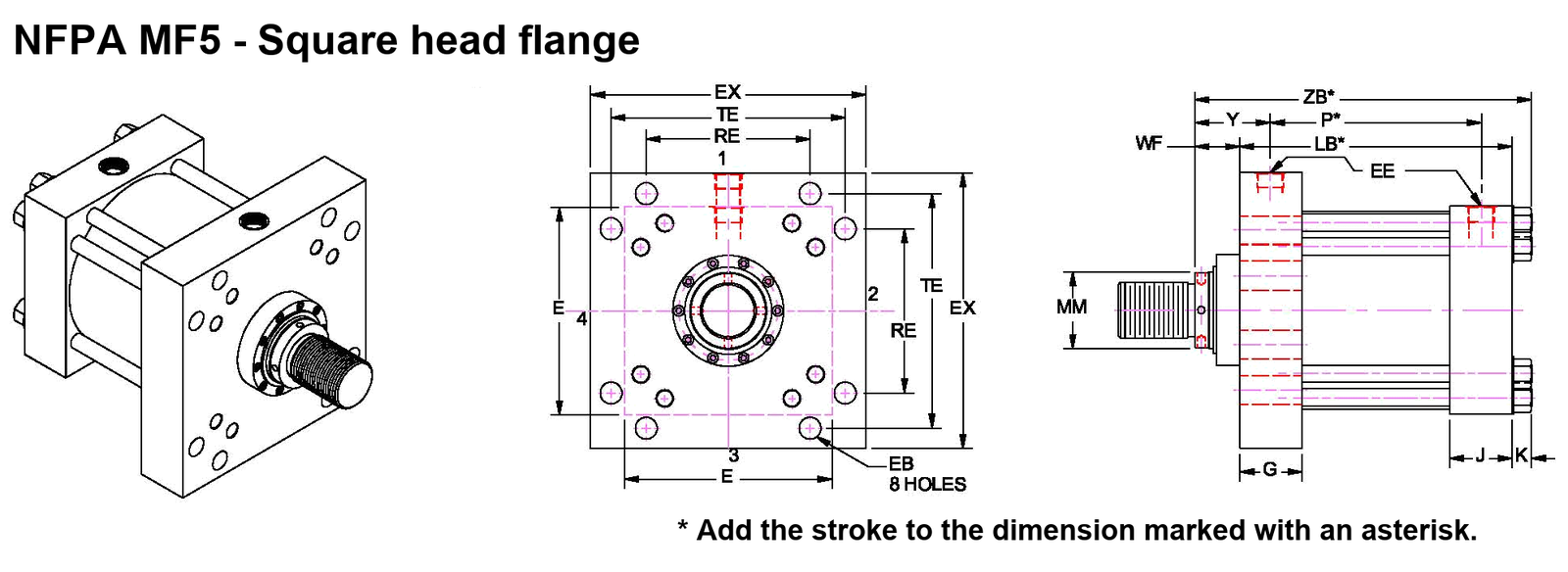

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | FB | FH | R | TF | UF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 7/16 | 3/8 | 1.63 | 3 7/16 | 4 1/4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 9/16 | 5/8 | 2.05 | 4 1/8 | 5 1/8 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 9/16 | 5/8 | 2.55 | 4 5/8 | 5 5/8 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 11/16 | 3/4 | 3.25 | 5 7/8 | 7 1/8 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 11/16 | 7/8 | 3.82 | 6 3/8 | 7 5/8 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 15/16 | 7/8 | 4.95 | 8 3/16 | 9 3/4 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 1 1/16 | 1 | 5.73 | 9 7/16 | 11 1/4 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 1 3/16 | 1 | 6.58 | 10 5/8 | 12 5/8 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 1 5/16 | 1 | 7.5 | 11 13/16 | 14 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | RM | PRESSURE MAX PSI | VB | W | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 1 15/16 | 1500 | 1/4 | 5/8 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 1000 | 1/2 | 1 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 2000 | 1/4 | 3/4 | 2 15/32 | 6 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 1200 | 3/8 | 1 | 2 23/32 | 6 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 2000 | 1/4 | 3/4 | 2 15/32 | 6 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 1500 | 3/8 | 1 | 2 23/32 | 6 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 1100 | 1/2 | 1 1/4 | 2 31/32 | 7 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 800 | 1/4 | 7/8 | 2 23/32 | 7 11/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 800 | 3/8 | 1 1/8 | 2 31/32 | 7 15/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 600 | 3/8 | 1 1/4 | 3 3/32 | 8 1/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 1000 | 1/4 | 1 | 2 31/32 | 8 3/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 1000 | 1/4 | 1 1/8 | 3 3/32 | 8 5/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 700 | 3/8 | 1 3/8 | 3 11/32 | 8 9/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 850 | 1/4 | 1 1/8 | 3 3/32 | 9 1/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 850 | 3/8 | 1 3/8 | 3 11/32 | 9 5/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 450 | 3/8 | 1 3/8 | 3 11/32 | 9 5/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 800 | 3/8 | 1 3/8 | 3 11/32 | 9 5/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 650 | 1/4 | 1 1/4 | 3 19/32 | 10 9/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 650 | 1/4 | 1 1/4 | 3 19/32 | 10 9/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 400 | 1/4 | 1 1/4 | 3 19/32 | 10 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 400 | 1/4 | 1 1/4 | 3 19/32 | 10 9/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 1400 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 1200 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 1100 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 1000 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 800 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 1100 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 1000 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 1000 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 800 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 7 15/16 | 800 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | FB | FH | R | TF | UF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 7/16 | 3/8 | 1.63 | 3 7/16 | 4 1/4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 9/16 | 5/8 | 2.05 | 4 1/8 | 5 1/8 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 9/16 | 5/8 | 2.55 | 4 5/8 | 5 5/8 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 11/16 | 3/4 | 3.25 | 5 7/8 | 7 1/8 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 11/16 | 7/8 | 3.82 | 6 3/8 | 7 5/8 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 15/16 | 7/8 | 4.95 | 8 3/16 | 9 3/4 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 1 1/16 | 1 | 5.73 | 9 7/16 | 11 1/4 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 1 3/16 | 1 | 6.58 | 10 5/8 | 12 5/8 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 1 5/16 | 1 | 7.5 | 11 13/16 | 14 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | RM | PRESSURE MAX PSI | F | VB | W | Y | ZF* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 1 15/16 | 2500 | 3/8 | 1/4 | 5/8 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3000 | 3/8 | 1/2 | 1 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3000 | 3/8 | 1/4 | 3/4 | 2 15/32 | 6 5/8 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3000 | 3/8 | 3/8 | 1 | 2 23/32 | 6 7/8 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3000 | 3/8 | 1/4 | 3/4 | 2 15/32 | 6 3/4 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3000 | 3/8 | 3/8 | 1 | 2 23/32 | 7 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 3000 | 5/8 | 1/2 | 1 1/4 | 2 31/32 | 7 1/4 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3000 | 3/8 | 1/4 | 7/8 | 2 23/32 | 7 7/8 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 3000 | 5/8 | 3/8 | 1 1/8 | 2 31/32 | 8 1/8 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 3000 | 5/8 | 3/8 | 1 1/4 | 3 3/32 | 8 1/4 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 3000 | 5/8 | 1/4 | 1 | 2 31/32 | 8 1/2 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 3000 | 5/8 | 1/4 | 1 1/8 | 3 3/32 | 8 5/8 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 3000 | 5/8 | 3/8 | 1 3/8 | 3 11/32 | 8 7/8 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 2000 | 5/8 | 1/4 | 1 1/8 | 3 3/32 | 9 1/8 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 2000 | 5/8 | 3/8 | 1 3/8 | 3 11/32 | 9 3/8 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 2500 | 7/8 | 3/8 | 1 3/8 | 3 11/32 | 9 3/8 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 3000 | 15/16 | 3/8 | 1 3/8 | 3 11/32 | 9 3/8 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 1800 | 5/8 | 1/4 | 1 1/4 | 3 19/32 | 10 5/8 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 2000 | 7/8 | 1/4 | 1 1/4 | 3 19/32 | 10 5/8 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 2000 | 15/16 | 1/4 | 1 1/4 | 3 19/32 | 10 5/8 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 2500 | 15/16 | 1/4 | 1 1/4 | 3 19/32 | 10 5/8 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 1400 | 7/8 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 1200 | 15/16 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 1100 | 15/16 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 1000 | 15/16 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 800 | 15/16 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 1100 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 1000 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 1000 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 800 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 7 15/16 | 800 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | FB | FH | R | TF | UF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 7/16 | 3/8 | 1.63 | 3 7/16 | 4 1/4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 9/16 | 5/8 | 2.05 | 4 1/8 | 5 1/8 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 9/16 | 5/8 | 2.55 | 4 5/8 | 5 5/8 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 11/16 | 3/4 | 3.25 | 5 7/8 | 7 1/8 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 11/16 | 7/8 | 3.82 | 6 3/8 | 7 5/8 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 15/16 | 7/8 | 4.95 | 8 3/16 | 9 3/4 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 1 1/16 | 1 | 5.73 | 9 7/16 | 11 1/4 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 1 3/16 | 1 | 6.58 | 10 5/8 | 12 5/8 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 1 5/16 | 1 | 7.5 | 11 13/16 | 14 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | RM | MAX PRESSURE PSI | VB | W | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 1 15/16 | 3000 | 1/4 | 5/8 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3000 | 1/2 | 1 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3000 | 1/4 | 3/4 | 2 15/32 | 6 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3000 | 3/8 | 1 | 2 23/32 | 6 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3000 | 1/4 | 3/4 | 2 15/32 | 6 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3000 | 3/8 | 1 | 2 23/32 | 6 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 3000 | 1/2 | 1 1/4 | 2 31/32 | 7 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3000 | 1/4 | 7/8 | 2 23/32 | 7 11/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 3000 | 3/8 | 1 1/8 | 2 31/32 | 7 15/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 3000 | 3/8 | 1 1/4 | 3 3/32 | 8 1/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 3000 | 1/4 | 1 | 2 31/32 | 8 3/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 3000 | 1/4 | 1 1/8 | 3 3/32 | 8 5/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 3000 | 3/8 | 1 3/8 | 3 11/32 | 8 9/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 3000 | 1/4 | 1 1/8 | 3 3/32 | 9 1/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 3000 | 3/8 | 1 3/8 | 3 11/32 | 9 5/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 3000 | 3/8 | 1 3/8 | 3 11/32 | 9 5/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 3000 | 3/8 | 1 3/8 | 3 11/32 | 9 5/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 3000 | 1/4 | 1 1/4 | 3 19/32 | 10 9/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 3000 | 1/4 | 1 1/4 | 3 19/32 | 10 9/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 2700 | 1/4 | 1 1/4 | 3 19/32 | 10 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 2700 | 1/4 | 1 1/4 | 3 19/32 | 10 9/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 3000 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 3000 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 3000 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 3000 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 2700 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 3000 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 2500 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 2500 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 2500 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 7 15/16 | 2300 | 1/4 | 1 1/4 | 4 1/16 | 12 7/8 |
* Add the stroke to the dimension marked with an asterisk.

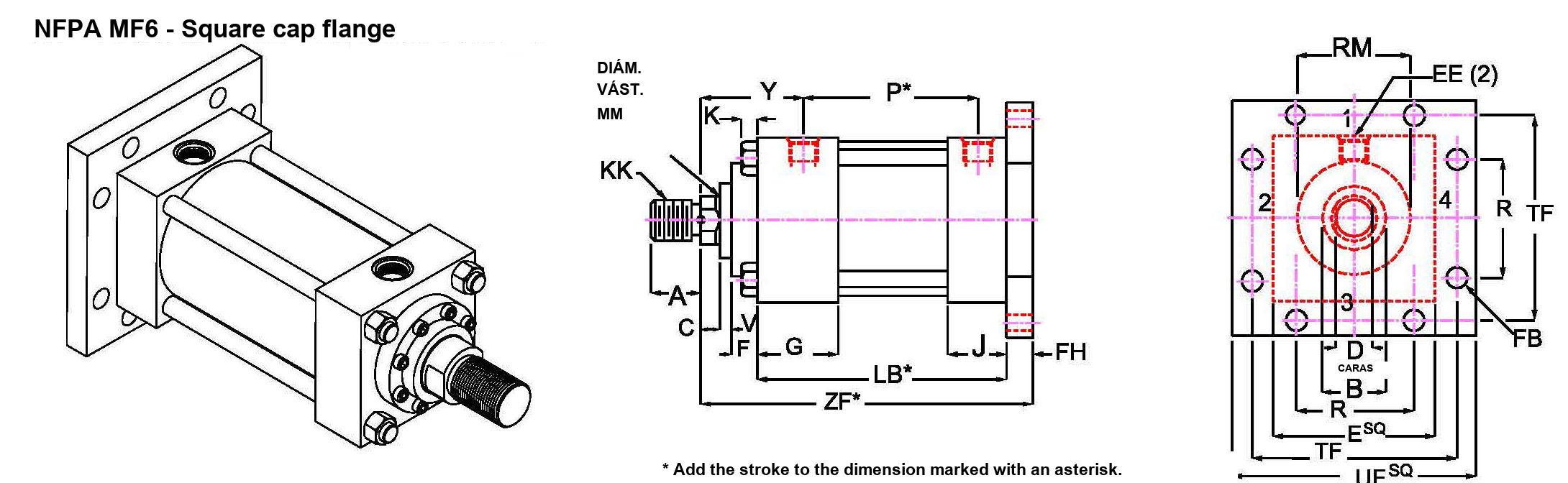

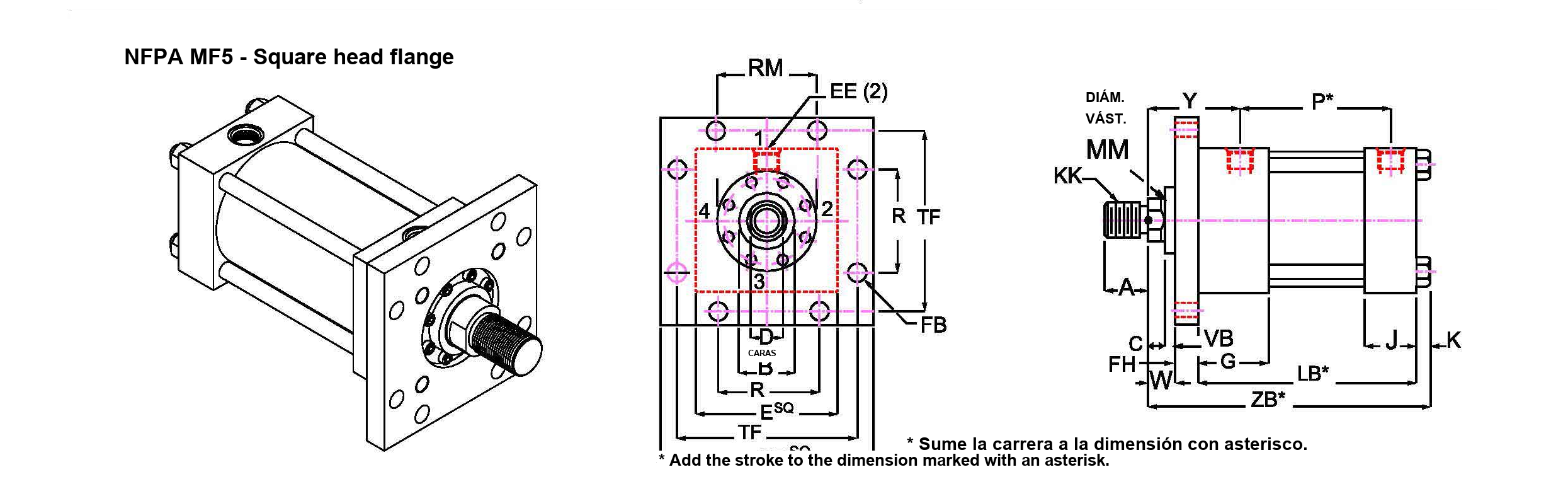

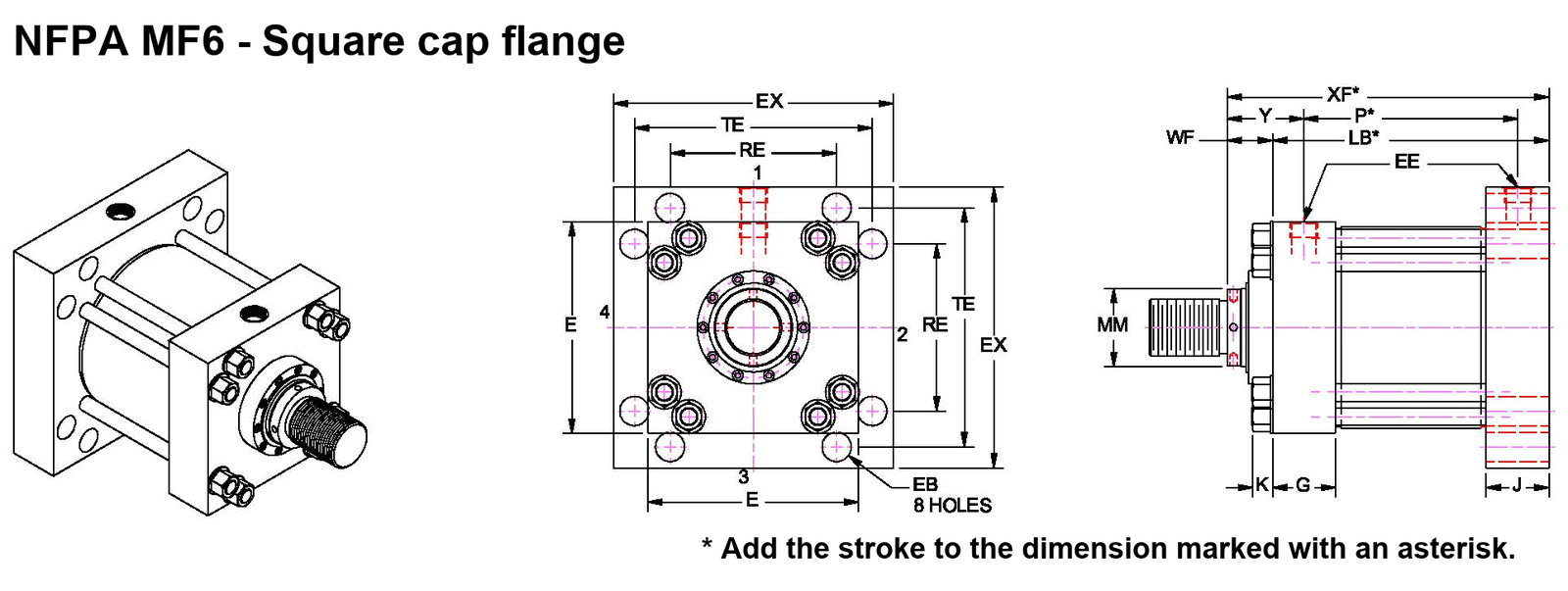

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | FB | FH | R | TF | UF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 7/16 | 3/8 | 1.63 | 3 7/16 | 4 1/4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 9/16 | 5/8 | 2.05 | 4 1/8 | 5 1/8 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 9/16 | 5/8 | 2.55 | 4 5/8 | 5 5/8 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 11/16 | 3/4 | 3.25 | 5 7/8 | 7 1/8 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 11/16 | 7/8 | 3.82 | 6 3/8 | 7 5/8 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 15/16 | 7/8 | 4.95 | 8 3/16 | 9 3/4 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 1 1/16 | 1 | 5.73 | 9 7/16 | 11 1/4 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 1 3/16 | 1 | 6.58 | 10 5/8 | 12 5/8 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 1 5/16 | 1 | 7.5 | 11 13/16 | 14 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | RM | F | VB | W | Y | ZF* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 1 15/16 | 3/8 | 1/4 | 5/8 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 1/2 | 1 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 1/4 | 3/4 | 2 15/32 | 6 5/8 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 3/8 | 1 | 2 23/32 | 6 7/8 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 2 3/8 | 3/8 | 1/4 | 3/4 | 2 15/32 | 6 3/4 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 3/8 | 1 | 2 23/32 | 7 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 1/2 | 1 1/4 | 2 31/32 | 7 1/4 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 2 7/8 | 3/8 | 1/4 | 7/8 | 2 23/32 | 7 7/8 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 3/8 | 1 1/8 | 2 31/32 | 8 1/8 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 3/8 | 1 1/4 | 3 3/32 | 8 1/4 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 3 15/32 | 5/8 | 1/4 | 1 | 2 31/32 | 8 1/2 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 1/4 | 1 1/8 | 3 3/32 | 8 5/8 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 3/8 | 1 3/8 | 3 11/32 | 8 7/8 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 3 23/32 | 5/8 | 1/4 | 1 1/8 | 3 3/32 | 9 1/8 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 3/8 | 1 3/8 | 3 11/32 | 9 3/8 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 3/8 | 1 3/8 | 3 11/32 | 9 3/8 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 3/8 | 1 3/8 | 3 11/32 | 9 3/8 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 4 1/4 | 5/8 | 1/4 | 1 1/4 | 3 19/32 | 10 5/8 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 1/4 | 1 1/4 | 3 19/32 | 10 5/8 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 1/4 | 1 1/4 | 3 19/32 | 10 5/8 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 1/4 | 1 1/4 | 3 19/32 | 10 5/8 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 5 7/16 | 7/8 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 15/16 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 15/16 | 1/4 | 1 1/4 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 5 15/16 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 6 5/16 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 6 15/16 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 7 7/16 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 7 15/16 | 15/16 | 1/4 | 1 1/4 | 4 1/16 | 12 3/4 |
* Add the stroke to the dimension marked with an asterisk.

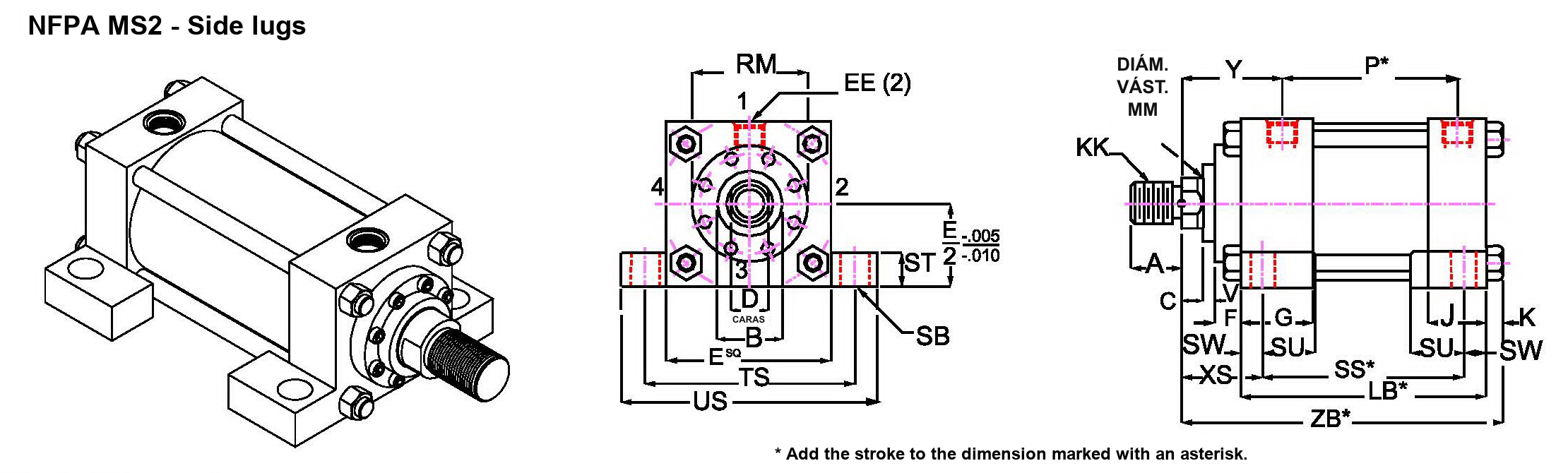

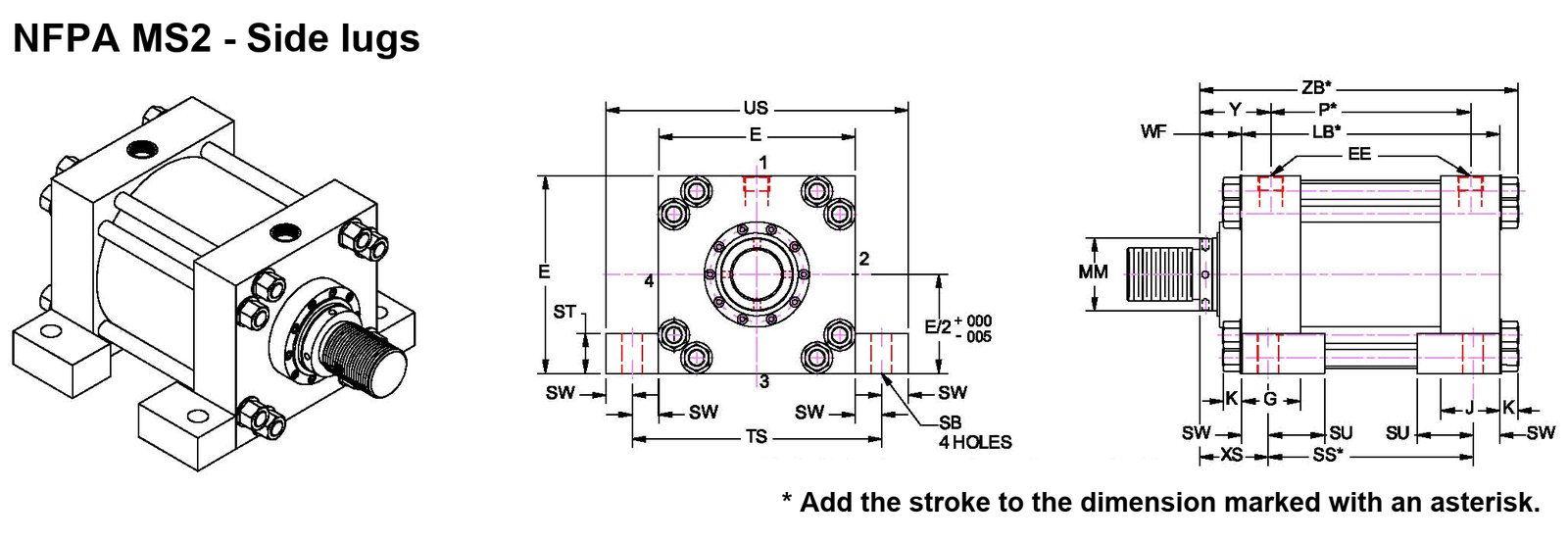

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | SB | SS* | ST | SU | SW | TS | US |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 7/16 | 3 7/8 | 1/2 | 15/16 | 3/8 | 3 1/4 | 4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 9/16 | 3 5/8 | 3/4 | 1 1/4 | 1/2 | 4 | 5 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 13/16 | 3 3/8 | 1 | 1 9/16 | 11/16 | 4 7/8 | 6 1/4 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 13/16 | 4 1/8 | 1 | 1 9/16 | 11/16 | 5 7/8 | 7 1/4 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 1 1/16 | 4 | 1 1/4 | 2 | 7/8 | 6 3/4 | 8 1/2 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 1 1/16 | 4 1/2 | 1 1/4 | 2 | 7/8 | 8 1/4 | 10 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 1 5/16 | 5 1/8 | 1 1/2 | 2 1/2 | 1 1/8 | 9 3/4 | 12 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 1 9/16 | 5 3/4 | 1 3/4 | 2 7/8 | 1 3/8 | 11 1/4 | 14 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 1 9/16 | 6 3/4 | 1 3/4 | 2 7/8 | 1 3/8 | 12 1/4 | 15 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | F | RM | V | XS | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 3/8 | 1 15/16 | 1/4 | 1 3/8 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/2 | 1 3/4 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/4 | 1 7/8 | 2 15/32 | 6 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 1/8 | 2 23/32 | 6 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 3/8 | 2 1/16 | 2 15/32 | 6 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 5/16 | 2 23/32 | 6 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 1/2 | 2 9/16 | 2 31/32 | 7 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 13/32 | 2 5/16 | 2 23/32 | 7 11/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 3/8 | 2 9/16 | 2 31/32 | 7 15/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 3/8 | 2 11/16 | 3 3/32 | 8 1/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 17/32 | 2 3/4 | 2 31/32 | 8 3/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 2 7/8 | 3 3/32 | 8 5/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 2 1/8 | 3 11/32 | 8 9/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 2 7/8 | 3 3/32 | 9 1/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 1/8 | 3 11/32 | 9 5/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 1/8 | 3 11/32 | 9 5/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 1/8 | 3 11/32 | 9 5/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 3/8 | 3 19/32 | 10 9/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 3/8 | 3 19/32 | 10 9/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 3/8 | 3 19/32 | 10 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 3/8 | 3 19/32 | 10 9/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 5/8 | 3 15/16 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 5/8 | 4 1/16 | 12 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 5/8 | 4 1/16 | 12 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 5/8 | 4 1/16 | 12 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 5/8 | 4 1/16 | 12 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 15/16 | 7 15/16 | 3/8 | 3 5/8 | 4 1/16 | 12 7/8 |
* Add the stroke to the dimension marked with an asterisk.

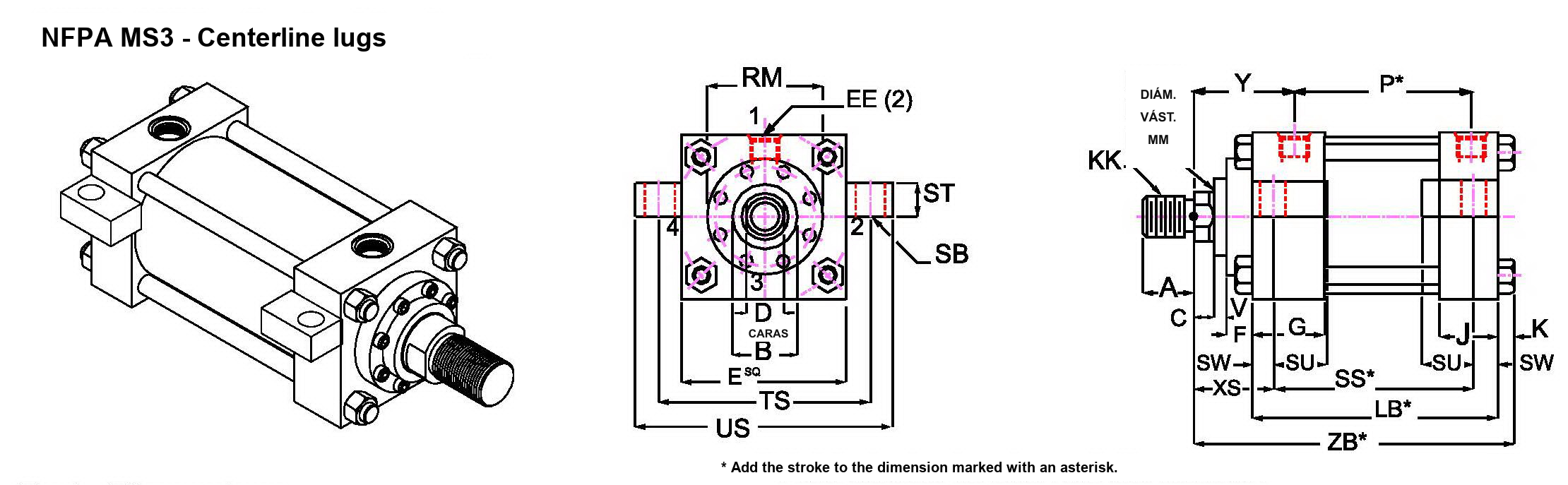

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | SB | SS* | ST | SU | SW | TS | US |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 7/16 | 3 7/8 | 1/2 | 15/16 | 3/8 | 3 1/4 | 4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 9/16 | 3 5/8 | 3/4 | 1 1/4 | 1/2 | 4 | 5 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 13/16 | 3 3/8 | 1 | 1 9/16 | 11/16 | 4 7/8 | 6 1/4 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 13/16 | 4 1/8 | 1 | 1 9/16 | 11/16 | 5 7/8 | 7 1/4 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 1 1/16 | 4 | 1 1/4 | 2 | 7/8 | 6 3/4 | 8 1/2 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 1 1/16 | 4 1/2 | 1 1/4 | 2 | 7/8 | 8 1/4 | 10 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 1 5/16 | 5 1/8 | 1 1/2 | 2 1/2 | 1 1/8 | 9 3/4 | 12 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 1 9/16 | 5 3/4 | 1 3/4 | 2 7/8 | 1 3/8 | 11 1/4 | 14 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 1 9/16 | 6 3/4 | 1 3/4 | 2 7/8 | 1 3/8 | 12 1/4 | 15 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | F | RM | V | XS | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 3/8 | 1 15/16 | 1/4 | 1 3/8 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/2 | 1 3/4 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/4 | 1 7/8 | 2 15/32 | 6 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 1/8 | 2 23/32 | 6 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 3/8 | 2 1/16 | 2 15/32 | 6 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 5/16 | 2 23/32 | 6 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 1/2 | 2 9/16 | 2 31/32 | 7 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 13/32 | 2 5/16 | 2 23/32 | 7 11/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 3/8 | 2 9/16 | 2 31/32 | 7 15/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 3/8 | 2 11/16 | 3 3/32 | 8 1/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 17/32 | 2 3/4 | 2 31/32 | 8 3/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 2 7/8 | 3 3/32 | 8 5/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 2 1/8 | 3 11/32 | 8 9/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 2 7/8 | 3 3/32 | 9 1/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 1/8 | 3 11/32 | 9 5/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 1/8 | 3 11/32 | 9 5/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 1/8 | 3 11/32 | 9 5/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 3/8 | 3 19/32 | 10 9/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 3/8 | 3 19/32 | 10 9/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 3/8 | 3 19/32 | 10 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 3/8 | 3 19/32 | 10 9/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 5/8 | 3 15/16 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 5/8 | 4 1/16 | 12 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 5/8 | 4 1/16 | 12 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 5/8 | 4 1/16 | 12 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 5/8 | 4 1/16 | 12 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 15/16 | 7 15/16 | 3/8 | 3 5/8 | 4 1/16 | 12 7/8 |
* Add the stroke to the dimension marked with an asterisk.

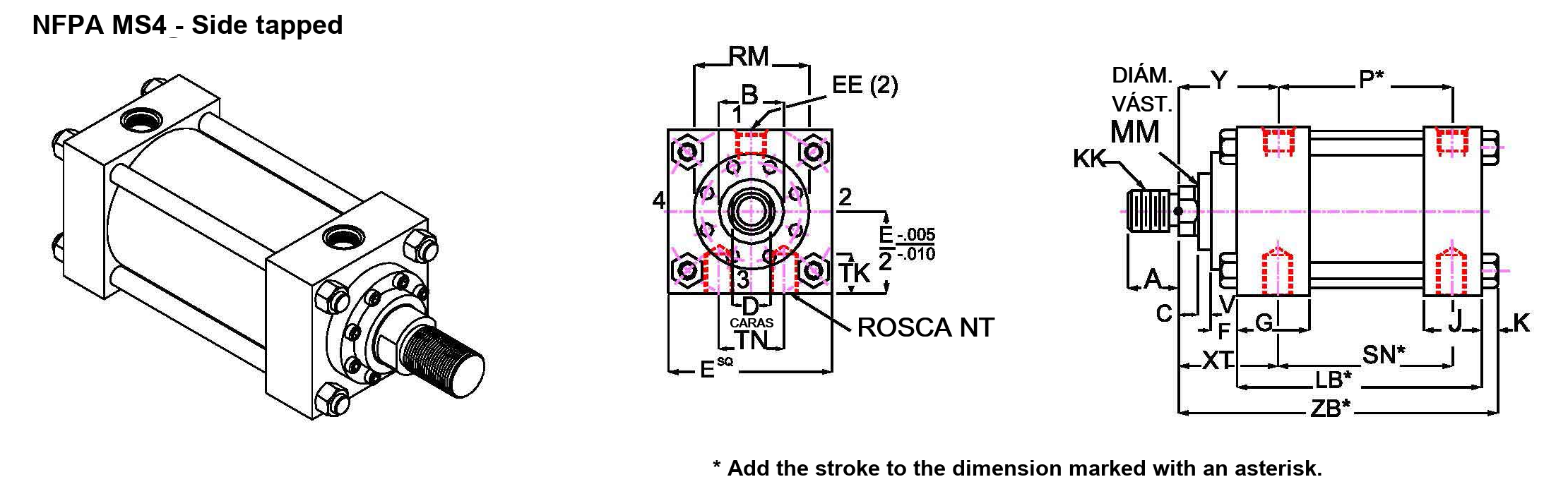

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | NT | P* | SN* | TK | TN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 3/8-16 | 2 11/16 | 2 7/8 | 9/16 | 3/4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 1/2-13 | 2 11/16 | 2 7/8 | 1/2 | 15/16 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 5/8-11 | 2 13/16 | 3 | 13/16 | 1 5/16 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3/4-10 | 3 9/16 | 3 1/2 | 3/4 | 1 1/2 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 1-8 | 3 13/16 | 3 3/4 | 1 | 2 1/16 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 1-8 | 4 5/16 | 4 1/4 | 1 1/8 | 2 15/16 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 1 1/4-7 | 4 11/16 | 5 1/8 | 1 5/16 | 3 5/16 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 1 1/2-6 | 5 1/8 | 5 7/8 | 2 1/8 | 3 3/4 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 1 1/2-6 | 5 7/8 | 6 5/8 | 1 9/16 | 4 1/4 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | F | RM | V | XT | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 3/8 | 1 15/16 | 1/4 | 2 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/2 | 2 3/8 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/4 | 2 3/8 | 2 15/32 | 6 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 5/8 | 2 23/32 | 6 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 3/8 | 2 3/8 | 2 15/32 | 6 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 5/8 | 2 23/32 | 6 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 1/2 | 2 7/8 | 2 31/32 | 7 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 13/32 | 2 3/4 | 2 23/32 | 7 11/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 3/8 | 3 | 2 31/32 | 7 15/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 3/8 | 3 1/8 | 3 3/32 | 8 1/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 17/32 | 3 | 2 31/32 | 8 3/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 3 1/8 | 3 3/32 | 8 5/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 3/8 | 3 11/32 | 8 9/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 3 1/8 | 3 3/32 | 9 1/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 3/8 | 3 11/32 | 9 5/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 3/8 | 3 11/32 | 9 5/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 3/8 | 3 11/32 | 9 5/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 1/2 | 3 19/32 | 10 9/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 1/2 | 3 19/32 | 10 9/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 1/2 | 3 19/32 | 10 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 1/2 | 3 19/32 | 10 9/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 13/16 | 3 15/16 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 13/16 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 13/16 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 13/16 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 13/16 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 15/16 | 4 1/16 | 12 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 15/16 | 4 1/16 | 12 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 15/16 | 4 1/16 | 12 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 15/16 | 4 1/16 | 12 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 15/16 | 7 15/16 | 3/8 | 3 15/16 | 4 1/16 | 12 7/8 |
* Add the stroke to the dimension marked with an asterisk.

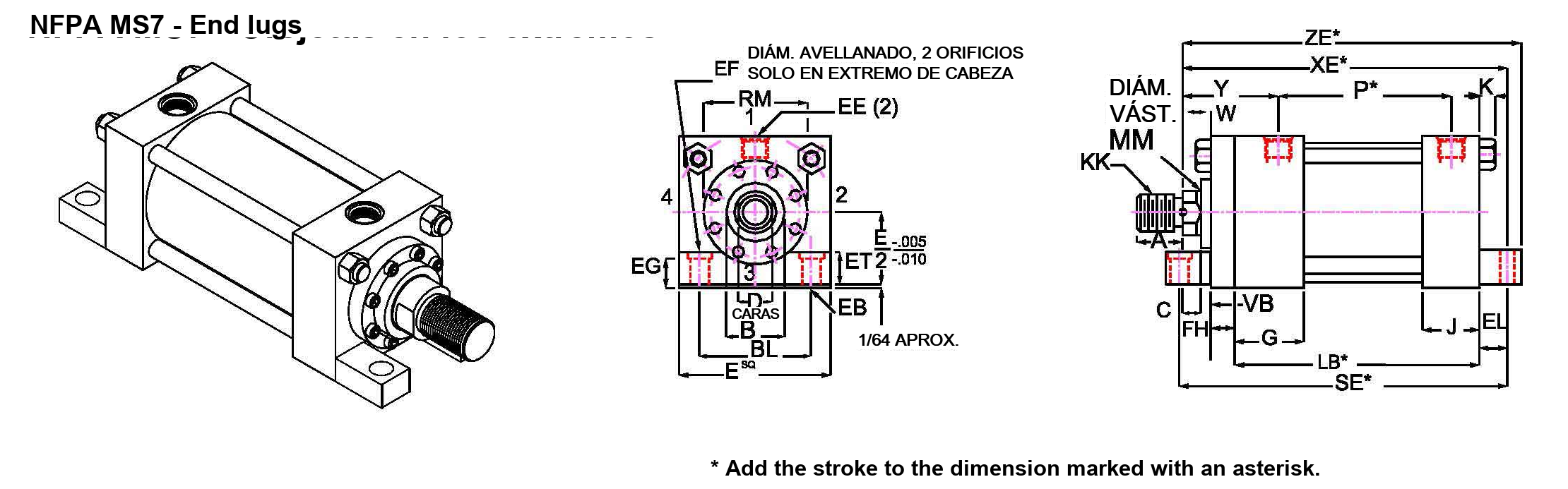

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | BL | EB | EF | EG | EL | ET | FH | SE* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 1.63 | 7/16 | 5/8 | 11/16 | 7/8 | 7/8 | 3/8 | 6 3/4 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 2.07 | 9/16 | 13/16 | 3/4 | 15/16 | 1 | 5/8 | 7 1/8 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 2.56 | 9/16 | 13/16 | 3/4 | 15/16 | 1 | 5/8 | 7 1/4 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 3.27 | 11/16 | 1 | 1 1/16 | 1 1/8 | 1 1/4 | 3/4 | 8 1/2 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 3.84 | 11/16 | 1 | 7/8 | 1 1/8 | 1 1/4 | 7/8 | 8 7/8 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 4.95 | 15/16 | 1 3/8 | 1 1/4 | 1 1/2 | 1 1/2 | 7/8 | 10 1/8 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 5.74 | 1 1/16 | 1 5/8 | 1 1/2 | 1 11/16 | 1 3/4 | 1 | 11 3/4 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 6.58 | 1 3/16 | 1 5/8 | 1 1/2 | 1 13/16 | 2 | 1 | 13 1/8 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 7.51 | 1 5/16 | 2 3/32 | 1 3/4 | 2 | 2 | 1 | 14 1/2 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | F | RM | VB | W | XE* | Y | ZB* | ZE* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 3/8 | 1 15/16 | 1/4 | 5/8 | 6 1/2 | 2 15/32 | 6 | 6 7/8 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/2 | 1 | 6 7/8 | 2 15/32 | 6 3/8 | 7 1/4 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/4 | 3/4 | 6 15/16 | 2 15/32 | 6 7/16 | 7 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 1 | 7 3/16 | 2 23/32 | 6 11/16 | 7 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/4 | 3/4 | 7 1/16 | 2 15/32 | 6 9/16 | 7 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 1 | 7 5/16 | 2 23/32 | 6 13/16 | 7 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 1/2 | 1 1/4 | 7 9/16 | 2 31/32 | 7 1/16 | 8 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 1/4 | 7/8 | 8 1/4 | 2 23/32 | 7 11/16 | 8 7/8 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 3/8 | 1 1/8 | 8 1/2 | 2 31/32 | 7 15/16 | 9 1/8 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 3/8 | 1 1/4 | 8 5/8 | 3 3/32 | 8 1/16 | 9 1/4 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 1/4 | 1 | 8 3/4 | 2 31/32 | 8 3/16 | 9 3/8 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 1/4 | 1 1/8 | 8 7/8 | 3 3/32 | 8 5/16 | 9 1/2 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 3/8 | 1 3/8 | 9 1/8 | 3 11/32 | 8 9/16 | 9 3/4 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 1/4 | 1 1/8 | 9 3/4 | 3 3/32 | 9 1/16 | 10 1/2 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 3/8 | 1 3/8 | 10 | 3 11/32 | 9 5/16 | 10 3/4 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 3/8 | 1 3/8 | 10 | 3 11/32 | 9 5/16 | 10 3/4 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 3/8 | 1 3/8 | 10 | 3 11/32 | 9 5/16 | 10 3/4 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 1/4 | 1 1/4 | 11 5/16 | 3 19/32 | 10 9/16 | 12 3/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 1/4 | 1 1/4 | 11 5/16 | 3 19/32 | 10 9/16 | 12 3/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 1/4 | 1 1/4 | 11 5/16 | 3 19/32 | 10 9/16 | 12 3/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 1/4 | 1 1/4 | 11 5/16 | 3 19/32 | 10 9/16 | 12 3/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 1/4 | 1 1/4 | 12 9/16 | 3 15/16 | 11 3/4 | 13 9/16 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 1/4 | 1 1/4 | 12 9/16 | 3 15/16 | 11 3/4 | 13 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 1/4 | 1 1/4 | 12 9/16 | 3 15/16 | 11 3/4 | 13 9/16 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 1/4 | 1 1/4 | 12 9/16 | 3 15/16 | 11 3/4 | 13 9/16 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 1/4 | 1 1/4 | 12 9/16 | 3 15/16 | 11 3/4 | 13 9/16 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 1/4 | 1 1/4 | 13 3/4 | 4 1/16 | 12 7/8 | 14 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 1/4 | 1 1/4 | 13 3/4 | 4 1/16 | 12 7/8 | 14 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 1/4 | 1 1/4 | 13 3/4 | 4 1/16 | 12 7/8 | 14 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 1/4 | 1 1/4 | 13 3/4 | 4 1/16 | 12 7/8 | 14 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 15/16 | 7 15/16 | 1/4 | 1 1/4 | 13 3/4 | 4 1/16 | 12 7/8 | 14 7/8 |
* Add the stroke to the dimension marked with an asterisk.

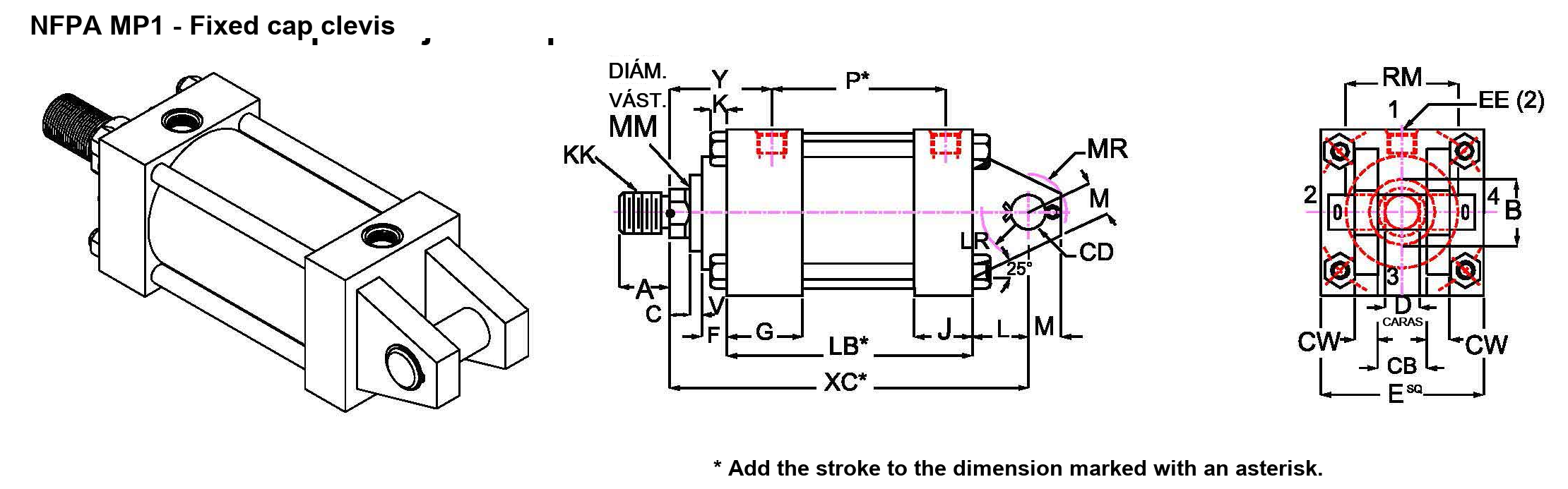

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | CB | CD | CW | L | LR | M | MR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 3/4 | 1/2 | 1/2 | 3/4 | 9/16 | 1/2 | 9/16 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 1 1/4 | 3/4 | 5/8 | 1 1/4 | 1 1/16 | 3/4 | 1 1/16 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 1 1/4 | 3/4 | 5/8 | 1 1/4 | 1 1/16 | 3/4 | 1 1/16 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 1 1/2 | 1 | 3/4 | 1 1/2 | 1 1/4 | 1 | 1 1/8 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 2 | 1 3/8 | 1 | 2 1/8 | 1 7/8 | 1 3/8 | 1 3/4 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 2 1/2 | 1 3/4 | 1 1/4 | 2 1/4 | 1 15/16 | 1 3/4 | 1 7/8 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 2 1/2 | 2 | 1 1/4 | 2 1/2 | 2 1/16 | 2 | 2 1/8 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 3 | 2 1/2 | 1 1/2 | 3 | 2 9/16 | 2 1/2 | 2 1/2 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 3 | 3 | 1 1/2 | 3 1/4 | 2 11/16 | 2 3/4 | 2 3/4 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | F | RM | V | Y | XC* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 3/8 | 1 15/16 | 1/4 | 2 15/32 | 6 3/8 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/2 | 2 15/32 | 6 3/4 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/4 | 2 15/32 | 7 1/4 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 23/32 | 7 1/2 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 3/8 | 2 15/32 | 7 3/8 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 23/32 | 7 5/8 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 1/2 | 2 31/32 | 7 7/8 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 13/32 | 2 23/32 | 8 5/8 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 3/8 | 2 31/32 | 8 7/8 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 3/8 | 3 3/32 | 9 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 17/32 | 2 31/32 | 9 3/4 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 3 3/32 | 9 7/8 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 11/32 | 10 1/8 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 3 3/32 | 10 1/2 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 11/32 | 10 3/4 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 11/32 | 10 3/4 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 11/32 | 10 3/4 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 19/32 | 12 1/8 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 19/32 | 12 1/8 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 19/32 | 12 1/8 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 19/32 | 12 1/8 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 15/32 | 13 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 15/16 | 13 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 15/16 | 13 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 15/16 | 13 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 15/16 | 13 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 4 1/16 | 15 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 4 1/16 | 15 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 4 1/16 | 15 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 4 1/16 | 15 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 15/16 | 7 15/16 | 3/8 | 4 1/16 | 15 |
* Add the stroke to the dimension marked with an asterisk.

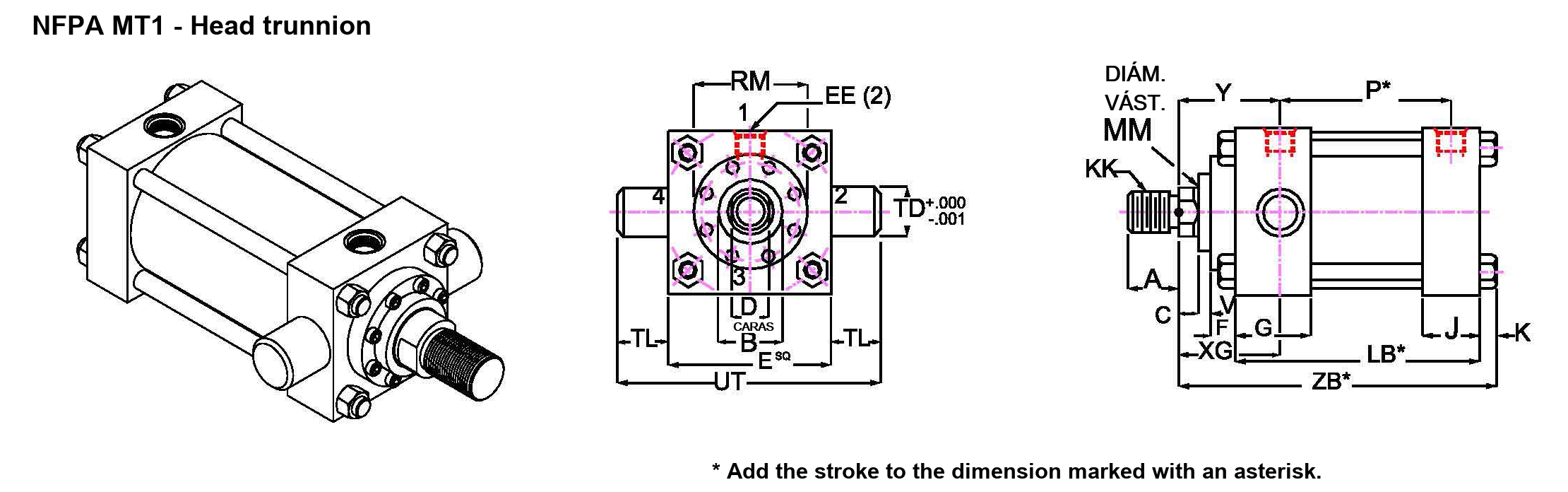

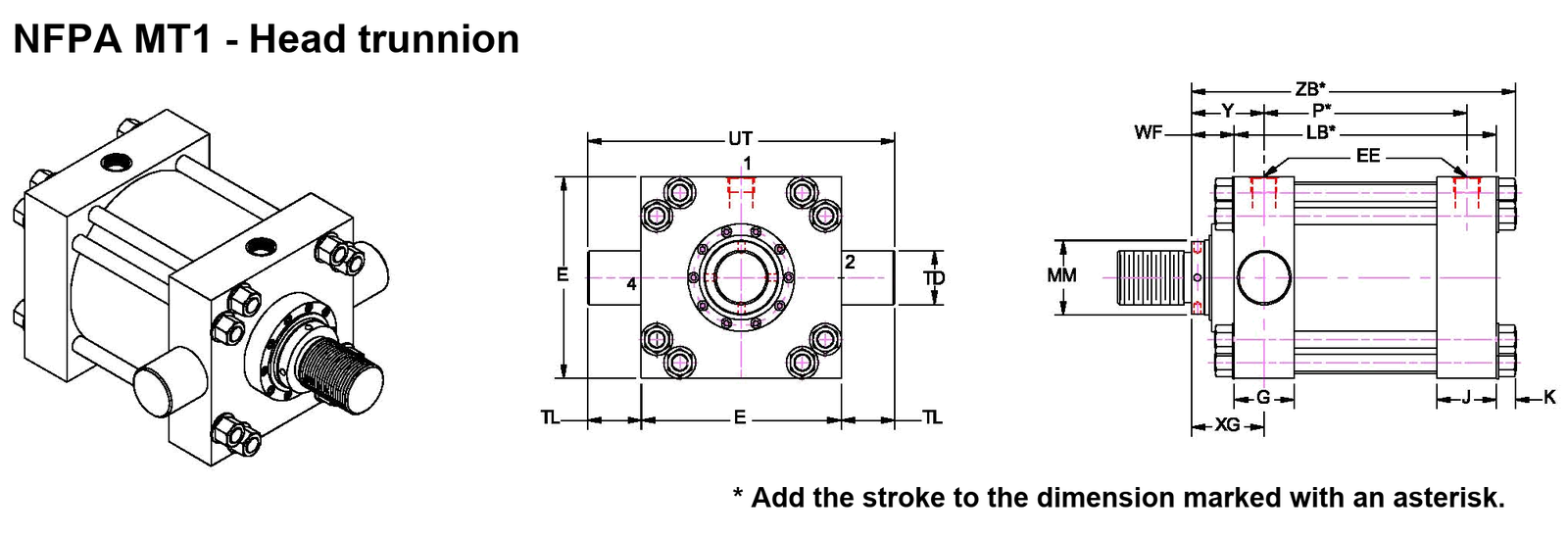

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | TD | TL | UT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 1 | 1 | 4 1/2 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 1 3/8 | 1 3/8 | 5 3/4 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 1 3/8 | 1 3/8 | 6 1/4 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 1 3/4 | 1 3/4 | 8 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 1 3/4 | 1 3/4 | 8 1/2 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 1 3/4 | 1 3/4 | 10 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 2 | 2 | 11 1/2 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 2 1/2 | 2 1/2 | 13 1/2 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 3 | 3 | 15 1/2 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | F | RM | V | XG | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 3/8 | 1 15/16 | 1/4 | 1 7/8 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/2 | 2 1/4 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/4 | 2 1/4 | 2 15/32 | 6 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 1/2 | 2 23/32 | 6 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 3/8 | 2 1/4 | 2 15/32 | 6 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 1/2 | 2 23/32 | 6 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 1/2 | 2 3/4 | 2 31/32 | 7 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 13/32 | 2 5/8 | 2 23/32 | 7 11/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 3/8 | 2 7/8 | 2 31/32 | 7 15/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 3/8 | 3 | 3 3/32 | 8 1/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 17/32 | 2 7/8 | 2 31/32 | 8 3/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 3 | 3 3/32 | 8 5/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 1/4 | 3 11/32 | 8 9/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 3 | 3 3/32 | 9 1/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 1/4 | 3 11/32 | 9 5/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 1/4 | 3 11/32 | 9 5/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 1/4 | 3 11/32 | 9 5/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 3/8 | 3 19/32 | 10 9/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 3/8 | 3 19/32 | 10 9/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 3/8 | 3 19/32 | 10 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 3/8 | 3 19/32 | 10 9/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 5/8 | 3 15/32 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 5/8 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 3/4 | 4 1/16 | 12 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 3/4 | 4 1/16 | 12 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 3/4 | 4 1/16 | 12 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 3/4 | 4 1/16 | 12 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 15/16 | 7 15/16 | 3/8 | 3 3/4 | 4 1/16 | 12 7/8 |
* Add the stroke to the dimension marked with an asterisk.

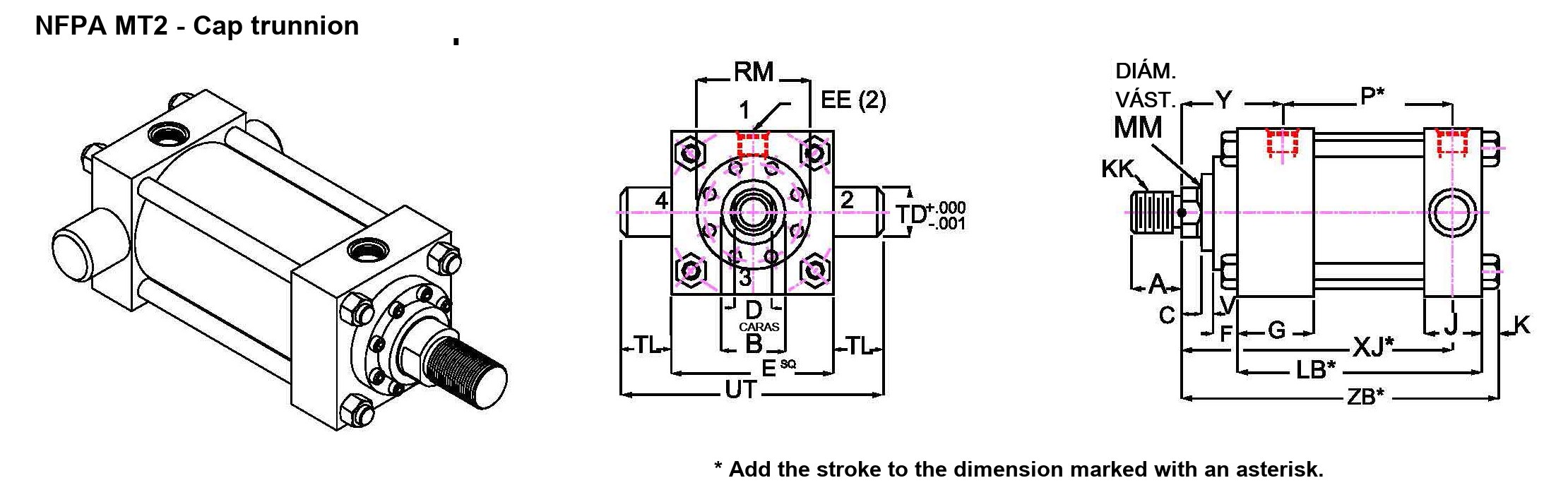

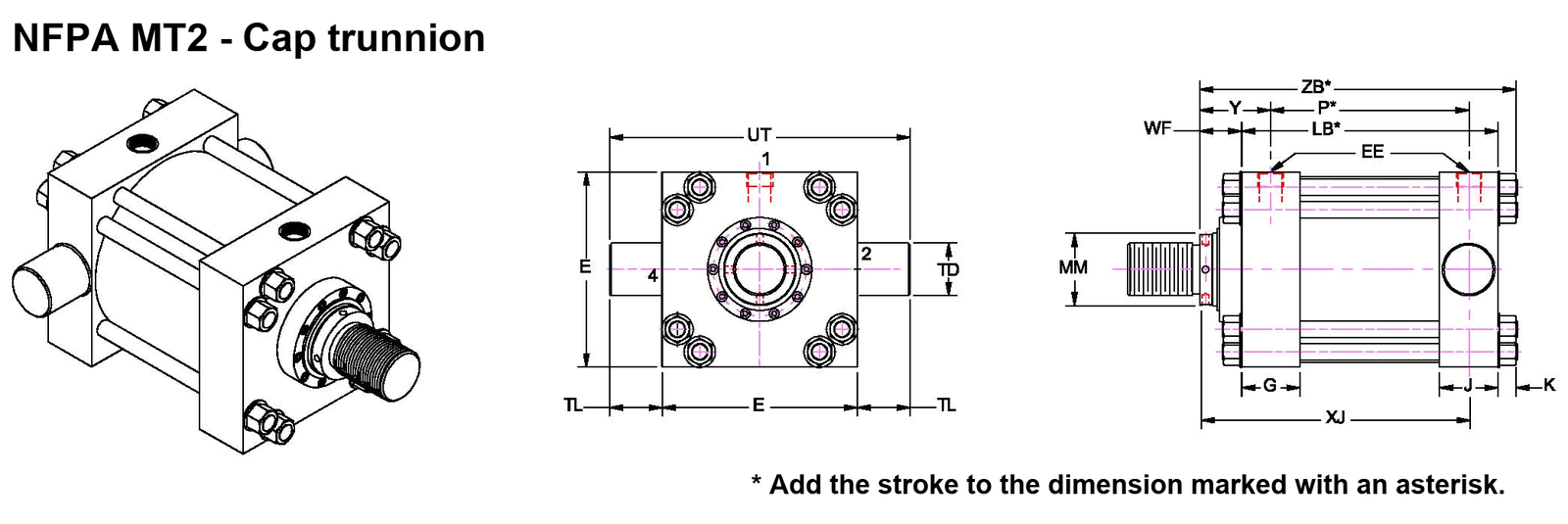

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | TD | TL | UT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 1 | 1 | 4 1/2 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 1 3/8 | 1 3/8 | 5 3/4 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 1 3/8 | 1 3/8 | 6 1/4 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 1 3/4 | 1 3/4 | 8 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 1 3/4 | 1 3/4 | 8 1/2 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 1 3/4 | 1 3/4 | 10 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 2 | 2 | 11 1/2 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 2 1/2 | 2 1/2 | 13 1/2 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 3 | 3 | 15 1/2 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | F | RM | V | XJ* | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 3/8 | 1 15/16 | 1/4 | 4 7/8 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/2 | 5 1/4 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/4 | 5 1/4 | 2 15/32 | 6 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 5 1/2 | 2 23/32 | 6 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 3/8 | 5 3/8 | 2 15/32 | 6 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 5 5/8 | 2 23/32 | 6 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 1/2 | 5 7/8 | 2 31/32 | 7 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 13/32 | 6 1/4 | 2 23/32 | 7 11/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 3/8 | 6 1/2 | 2 31/32 | 7 15/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 3/8 | 6 5/8 | 3 3/32 | 8 1/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 17/32 | 6 3/4 | 2 31/32 | 8 3/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 6 7/8 | 3 3/32 | 8 5/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 7 1/8 | 3 11/32 | 8 9/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 7 3/8 | 3 3/32 | 9 1/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 7 5/8 | 3 11/32 | 9 5/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 7 5/8 | 3 11/32 | 9 5/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 7 5/8 | 3 11/32 | 9 5/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 8 3/8 | 3 19/32 | 10 9/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 8 3/8 | 3 19/32 | 10 9/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 8 3/8 | 3 19/32 | 10 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 8 3/8 | 3 19/32 | 10 9/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 9 3/8 | 3 15/32 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 9 3/8 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 9 3/8 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 9 3/8 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 9 3/8 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 10 1/4 | 4 1/16 | 12 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 10 1/4 | 4 1/16 | 12 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 10 1/4 | 4 1/16 | 12 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 10 1/4 | 4 1/16 | 12 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 15/16 | 7 15/16 | 3/8 | 10 1/4 | 4 1/16 | 12 7/8 |
* Add the stroke to the dimension marked with an asterisk.

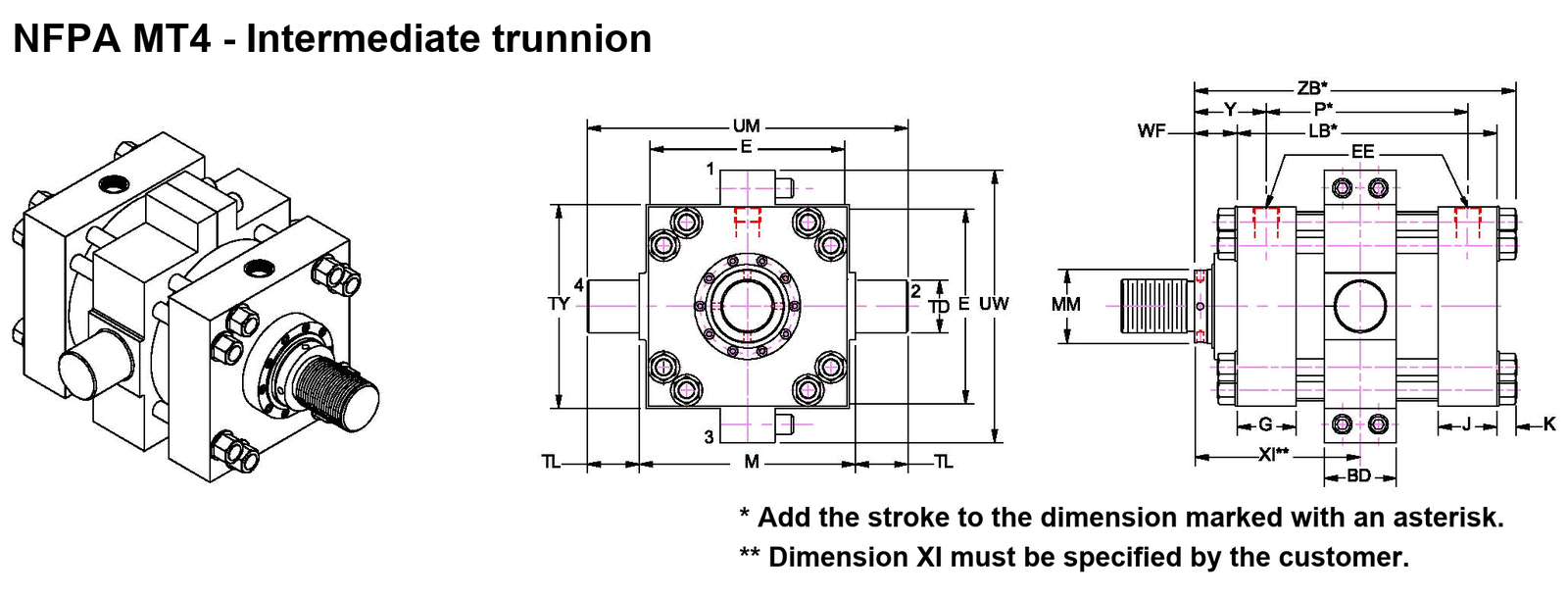

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | BD | TD | TL | TM | UM | UV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 3/8 | 4 5/8 | 2 11/16 | 1 1/2 | 1 | 1 | 3 | 5 | 3 |
| 2 | 3 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 5/8 | 2 11/16 | 1 1/2 | 1 3/8 | 1.375 | 3 1/2 | 6.25 | 3 1/2 |
| 2 1/2 | 3 1/2 | 8 | 1/2 | 1 3/4 | 1 1/2 | 7/16 | 4 3/4 | 2 13/16 | 1 1/2 | 1 3/8 | 1.375 | 4 | 6.75 | 4 |
| 3 1/4 | 4 1/2 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 1/2 | 3 9/16 | 2 | 1 3/4 | 1.75 | 5 | 8.5 | 5 |
| 4 | 5 | 12 | 3/4 | 2 | 1 3/4 | 9/16 | 5 3/4 | 3 13/16 | 2 | 1 3/4 | 1.75 | 5 1/2 | 9 | 5 1/2 |
| 5 | 6 1/2 | 12 | 3/4 | 2 | 1 3/4 | 13/16 | 6 1/4 | 4 5/16 | 2 1/2 | 1 3/4 | 1.75 | 7 | 10.5 | 7 |
| 6 | 7 1/2 | 16 | 1 | 2 1/4 | 2 1/4 | 15/16 | 7 3/8 | 4 11/16 | 3 | 2 | 2 | 8 1/2 | 12.5 | 8 1/2 |
| 7 | 8 1/2 | 20 | 1 1/4 | 2 3/4 | 2 3/4 | 1 | 8 1/2 | 5 1/8 | 3 | 2 1/2 | 2.5 | 9 3/4 | 14.75 | 9 3/4 |
| 8 | 9 1/2 | 24 | 1 1/2 | 3 | 3 | 1 1/8 | 9 1/2 | 5 7/8 | 3 1/2 | 3 | 3 | 11 | 17 | 11 |
| Bore | MM | KK | CC | A | B −.001/−.003 | C | D | F | RM | V | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 5/8 | 7/16-20 | 1/2-20 | 3/4 | 1 1/8 | 3/8 | 1/2 | 3/8 | 1 15/16 | 1/4 | 2 15/32 | 6 |
| 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/2 | 2 15/32 | 6 3/8 | |
| 2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 1/4 | 2 15/32 | 6 7/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 23/32 | 6 11/16 | |
| 2 1/2 | 1 | 3/4-16 | 7/8-14 | 1 1/8 | 1 1/2 | 1/2 | 7/8 | 3/8 | 2 3/8 | 3/8 | 2 15/32 | 6 9/16 |
| 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 3/8 | 2 23/32 | 6 13/16 | |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 1/2 | 2 31/32 | 7 1/16 | |
| 3 1/4 | 1 3/8 | 1-14 | 1 1/4-12 | 1 5/8 | 2 | 5/8 | 1 1/8 | 3/8 | 2 7/8 | 13/32 | 2 23/32 | 7 11/16 |
| 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 3/8 | 2 31/32 | 7 15/16 | |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 3/8 | 3 3/32 | 8 1/16 | |
| 4 | 1 3/4 | 1 1/4-12 | 1 1/2-12 | 2 | 2 3/8 | 3/4 | 1 1/2 | 5/8 | 3 15/32 | 17/32 | 2 31/32 | 8 3/16 |
| 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 3 3/32 | 8 5/16 | |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 11/32 | 8 9/16 | |
| 5 | 2 | 1 1/2-12 | 1 3/4-12 | 2 1/4 | 2 5/8 | 7/8 | 1 11/16 | 5/8 | 3 23/32 | 17/32 | 3 3/32 | 9 1/16 |
| 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 11/32 | 9 5/16 | |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 11/32 | 9 5/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 11/32 | 9 5/16 | |
| 6 | 2 1/2 | 1 7/8-12 | 2 1/4-12 | 3 | 3 1/8 | 1 | 2 1/16 | 5/8 | 4 1/4 | 21/32 | 3 19/32 | 10 9/16 |
| 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 19/32 | 10 9/16 | |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 19/32 | 10 9/16 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 19/32 | 10 9/16 | |
| 7 | 3 | 2 1/4-12 | 2 3/4-12 | 3 1/2 | 3 3/4 | 1 | 2 5/8 | 7/8 | 5 7/16 | 17/32 | 3 15/32 | 11 3/4 |
| 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 3 15/16 | 11 3/4 | |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 3 15/16 | 11 3/4 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 3 15/16 | 11 3/4 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 3 15/16 | 11 3/4 | |
| 8 | 3 1/2 | 2 1/2-12 | 3 1/4-12 | 3 1/2 | 4 1/4 | 1 | 3 | 15/16 | 5 15/16 | 17/32 | 4 1/16 | 12 7/8 |
| 4 | 3-12 | 3 3/4-12 | 4 | 4 3/4 | 1 | 3 3/8 | 15/16 | 6 5/16 | 3/8 | 4 1/16 | 12 7/8 | |
| 4 1/2 | 3 1/4-12 | 4 1/4-12 | 4 1/2 | 5 1/4 | 1 | 3 7/8 | 15/16 | 6 15/16 | 3/8 | 4 1/16 | 12 7/8 | |
| 5 | 3 1/2-12 | 4 3/4-12 | 5 | 5 3/4 | 1 | 4 1/4 | 15/16 | 7 7/16 | 3/8 | 4 1/16 | 12 7/8 | |
| 5 1/2 | 4-12 | 5 1/4-12 | 5 1/2 | 6 1/4 | 1 | 4 5/8 | 15/16 | 7 15/16 | 3/8 | 4 1/16 | 12 7/8 |
* Add the stroke to the dimension marked with an asterisk.

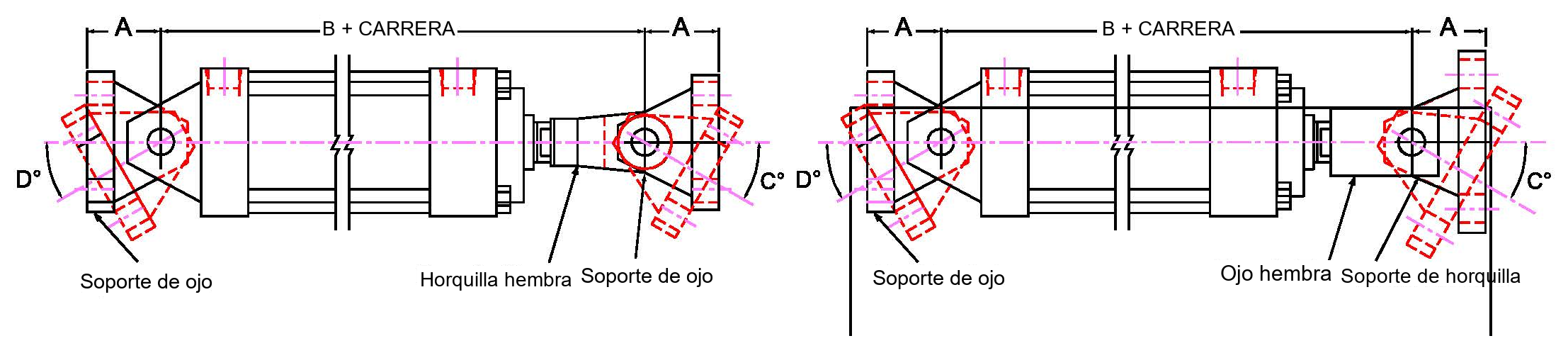

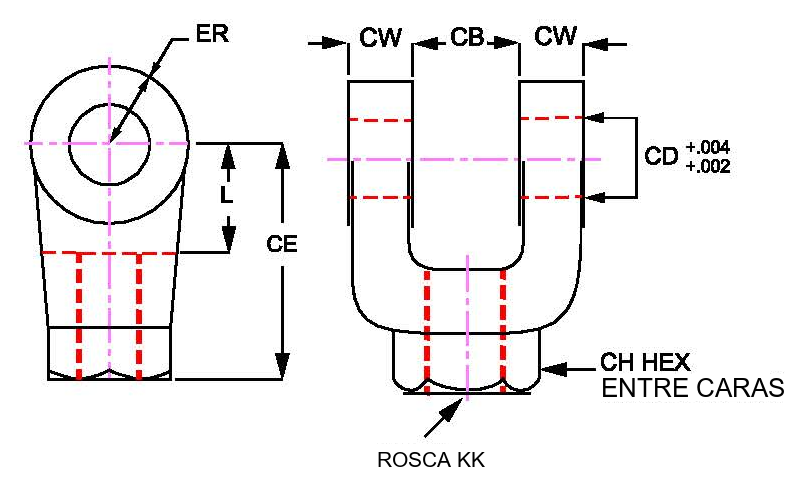

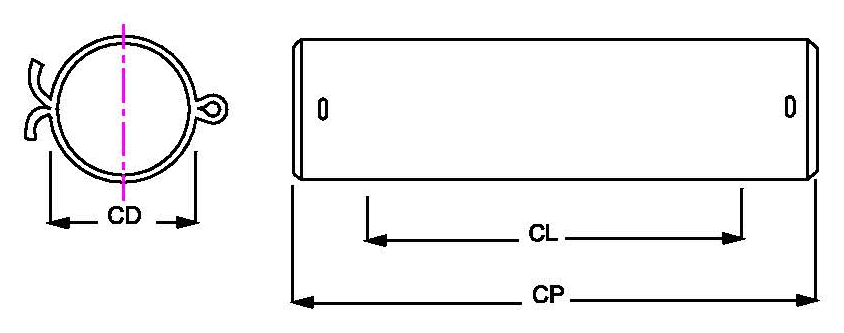

| Bore | A | B | Eye bracket | Female clevis | Clevis bracket | Female eye | Pivot pin | C° | D° |
|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 1 1/8 | 7 7/8 | EB -1003 | FC -1005 | CB -1003 | FE -1003 | PP -1003 | 90° | 60° |
| 2 | 1 7/8 | 9 5/8 | EB -1004 | FC -1008 | CB -1004 | FE -1004 | PP -1004 | 90° | 65° |
| 2 1/2 | 1 7/8 | 9 3/4 | EB -1004 | FC -1008 | CB -1005 | FE -1004 | PP -1004 | 90° | 65° |
| 3 1/4 | 2 3/8 | 11 3/4 | EB -1006 | FC -1011 | CB -1006 | FE -1006 | PP -1006 | 80° | 65° |
| 4 | 3 | 13 7/8 | EB -1008 | FC -1014 | CB -1008 | FE -1008 | PP -1008 | 90° | 70° |
| 5 | 3 3/8 | 15 | EB -1010 | FC -1016 | CB -1010 | FE -1010 | PP -1010 | 75° | 65° |
| 6 | 4 | 17 5/8 | EB -1012 | FC -1020 | CB -1012 | FE -1012 | PP -1012 | 75° | 65° |
| 7 | 4 | 20 1/4 | EB -1014 | FC -1024 | CB -1014 | FE -1014 | PP -1014 | 70° | 65° |
| 8 | 4 1/4 | 21 3/4 | EB -1016 | FC -1028 | CB -1016 | FE -1016 | PP -1016 | 70° | 65° |
| 10 | 5 11/16 | 27 9/16 | EB -1020 | FC -1036 | CB -1020 | FE -1020 | PP -1020 | 70° | 60° |
| 12 | 6 7/16 | 32 3/16 | EB -1024 | FC -1044 | CB -1024 | FE -1024 | PP -1024 | 65° | 60° |
| Part no. | CB | CD +.004/+.002 | CE | CH | CW | ER | KK | L |
|---|---|---|---|---|---|---|---|---|
| FC -1005 | 3/4 | 1/2 | 1 1/2 | 7/8 | 1/2 | 1/2 | 7/16-20 | 3/4 |
| FC -1008 | 1 1/4 | 3/4 | 2 3/8 | 1 3/8 | 5/8 | 3/4 | 3/4-16 | 1 1/4 |
| FC -1011 | 1 1/2 | 1 | 3 1/8 | 1 5/8 | 3/4 | 1 | 1-14 | 1 1/2 |
| FC -1014 | 2 | 1 3/8 | 4 1/8 | 2 | 1 | 1 3/8 | 1 1/4-12 | 2 1/8 |
| FC -1016 | 2 1/2 | 1 3/4 | 4 1/2 | 2 3/8 | 1 1/4 | 1 3/4 | 1 1/2-12 | 2 1/4 |
| FC -1020 | 2 1/2 | 2 | 5 1/2 | 2 15/16 | 1 1/4 | 2 | 1 7/8-12 | 2 1/2 |
| FC -1024 | 3 | 2 1/2 | 6 1/2 | 3 1/2 | 1 1/2 | 2 1/2 | 2 1/4-12 | 3 |
| FC -1028 | 3 | 3 | 6 3/4 | 3 7/8 | 1 1/2 | 2 3/4 | 2 1/2-12 | 3 1/4 |
| FC -1036 | 4 | 3 1/2 | 8 1/2 | 5 | 2 | 3 1/2 | 3 1/4-12 | 4 |
| FC -1044 | 4 1/2 | 4 | 10 | 6 1/8 | 2 1/4 | 4 | 4-12 | 4 1/2 |
| Part no. | CD | CL | CP |
|---|---|---|---|
| PP -1003 | 1/2 | 1 3/4 | 2 3/8 |
| PP -1004 | 3/4 | 2 1/2 | 3 1/8 |
| PP -1006 | 1 | 3 | 3 3/4 |
| PP -1008 | 1 3/8 | 4 | 4 3/4 |
| PP -1010 | 1 3/4 | 5 | 6 1/32 |
| PP -1012 | 2 | 5 | 6 1/32 |
| PP -1014 | 2 1/2 | 6 | 7 1/32 |
| PP -1016 | 3 | 6 | 7 1/8 |
| PP -1020 | 3 1/2 | 8 | 9 5/8 |
| PP -1024 | 4 | 9 | 10 5/8 |
B + stroke. Dimensions in inches.

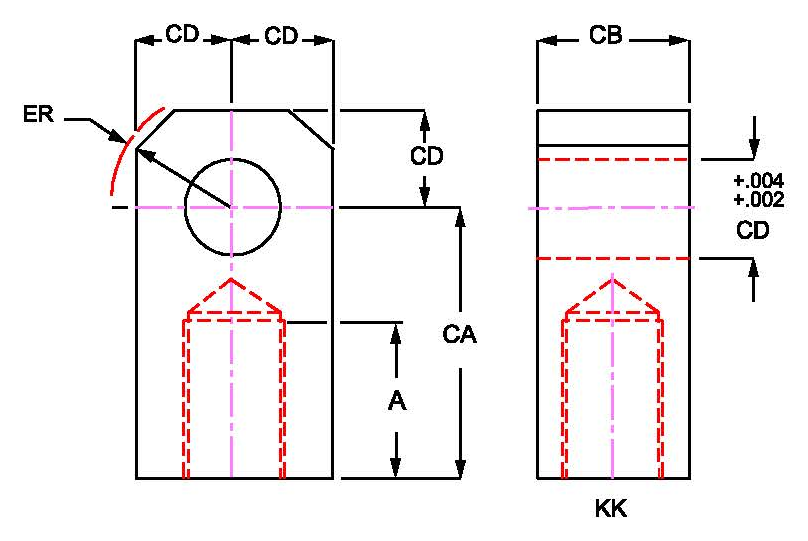

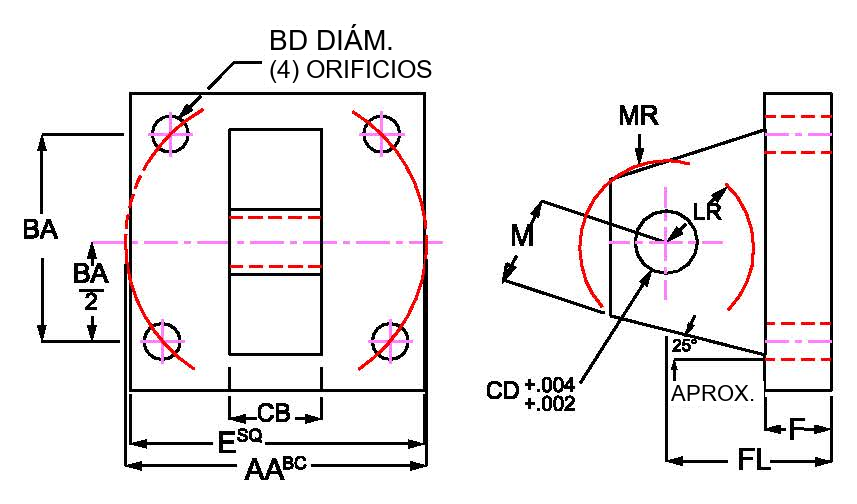

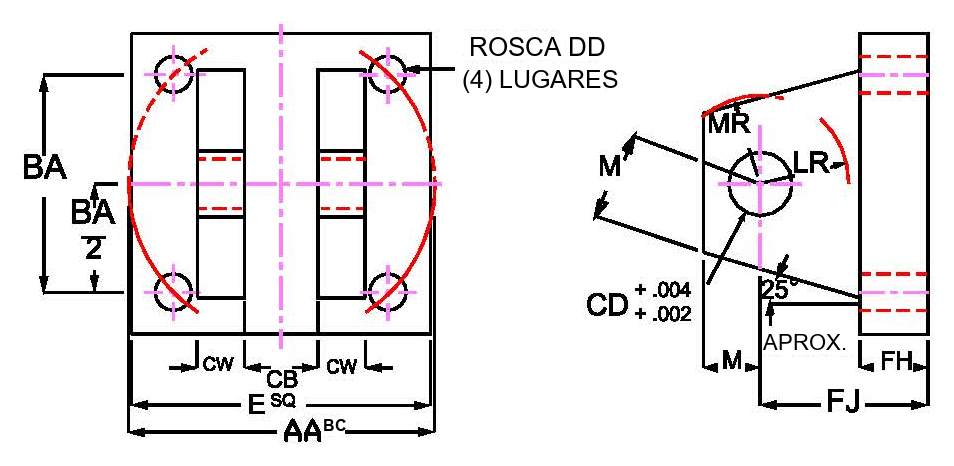

| Part no. | A | CA | CB | CD | ER | KK |
|---|---|---|---|---|---|---|
| FE-1002 | 3/4 | 1 1/2 | 7/16 | 7/16 | 19/32 | 5/16-24 |
| FE-1003 | 3/4 | 1 1/2 | 3/4 | 1/2 | 5/8 | 7/16-20 |
| FE-1004 | 1 1/8 | 2 1/16 | 1 1/4 | 3/4 | 7/8 | 3/4-16 |
| FE-1006 | 1 5/8 | 2 13/16 | 1 1/2 | 1 | 1 3/16 | 1-14 |
| FE-1008 | 2 | 3 7/16 | 2 | 1 3/8 | 1 9/16 | 1 1/4-12 |
| FE-1010 | 2 1/4 | 4 | 2 1/2 | 1 3/4 | 2 | 1 1/2-12 |
| FE-1012 | 3 | 5 | 2 1/2 | 2 | 2 1/4 | 1 7/8-12 |
| FE-1014 | 3 1/2 | 5 13/16 | 3 | 2 1/2 | 2 13/16 | 2 1/4-12 |
| FE-1016 | 3 1/2 | 6 1/8 | 3 | 3 | 3 1/4 | 2 1/2-12 |
| FE-1020 | 4 1/2 | 7 5/8 | 4 | 3 1/2 | 3 7/8 | 3 1/4-12 |
| FE-1024 | 5 1/2 | 9 1/8 | 4 1/2 | 4 | 4 7/16 | 4-12 |
| Part no. | AA | BA | BD | CB | CD +.004/+.002 | E | F | FL | LR | M | MR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EB -1003 | 2.3 | 1 5/8 | 13/32 | 3/4 | 1/2 | 2 1/2 | 3/8 | 1 1/8 | 1/2 | 1/2 | 9/16 |
| EB -1004 | 3.6 | 2 9/16 | 17/32 | 1 1/4 | 3/4 | 3 1/2 | 5/8 | 1 7/8 | 1 | 3/4 | 1 1/16 |
| EB -1006 | 4.6 | 3 1/4 | 21/32 | 1 1/2 | 1 | 4 1/2 | 7/8 | 2 3/8 | 1 | 1 | 1 1/8 |
| EB -1008 | 5.4 | 3 13/16 | 21/32 | 2 | 1 3/8 | 5 | 7/8 | 3 | 1 1/8 | 1 3/8 | 1 3/4 |
| EB -1010 | 7.0 | 4 15/16 | 29/32 | 2 1/2 | 1 3/4 | 6 1/2 | 1 1/8 | 3 3/8 | 1 3/4 | 1 3/4 | 1 7/8 |
| EB -1012 | 8.1 | 5 3/4 | 1 1/32 | 2 1/2 | 2 | 7 1/2 | 1 1/2 | 4 | 2 | 2 | 2 1/8 |
| EB -1014 | 9.3 | 6 19/32 | 1 5/32 | 3 | 2 1/2 | 8 1/2 | 1 3/4 | 4 3/4 | 2 1/2 | 2 1/2 | 2 1/2 |
| EB -1016 | 10.6 | 7 1/2 | 1 9/32 | 3 | 3 | 9 1/2 | 2 | 5 1/4 | 2 3/4 | 2 3/4 | 2 3/4 |
| EB -1020 | 13.6 | 9 5/8 | 1 25/32 | 4 | 3 1/2 | 12 5/8 | 1 11/16 | 5 11/16 | 3 1/2 | 3 1/2 | 3 1/2 |
| EB -1024 | 16.2 | 11 1/2 | 2 1/32 | 4 1/2 | 4 | 14 7/8 | 1 15/16 | 6 7/16 | 3 7/8 | 4 | 4 |
| Part no. | AA | BA | CB | CD +.004/+.002 | CW | DD | E | FH | FJ | LR | M | MR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CB -1003 | 2.3 | 1 5/8 | 25/32 | 1/2 | 1/2 | 3/8-24 | 2 1/2 | 3/8 | 1 1/8 | 1/2 | 1/2 | 9/16 |
| CB -1004 | 2.9 | 2 1/16 | 1 9/32 | 3/4 | 5/8 | 1/2-20 | 3 | 5/8 | 1 7/8 | 1 | 3/4 | 1 1/16 |
| CB -1005 | 3.6 | 2 9/16 | 1 9/32 | 3/4 | 5/8 | 1/2-20 | 3 1/2 | 5/8 | 1 7/8 | 1 1/16 | 3/4 | 1 1/16 |
| CB -1006 | 4.6 | 3 1/4 | 1 17/32 | 1 | 3/4 | 5/8-18 | 4 1/2 | 3/4 | 2 1/4 | 1 1/4 | 1 | 1 1/8 |
| CB -1008 | 5.4 | 3 13/16 | 2 1/32 | 1 3/8 | 1 | 5/8-18 | 5 | 7/8 | 3 | 1 7/8 | 1 3/8 | 1 3/4 |
| CB -1010 | 7.0 | 4 15/16 | 2 17/32 | 1 3/4 | 1 1/4 | 7/8-14 | 6 1/2 | 7/8 | 3 1/8 | 2 | 1 3/4 | 1 7/8 |
| CB -1012 | 8.1 | 5 3/4 | 2 17/32 | 2 | 1 1/4 | 1-14 | 7 1/2 | 1 | 3 1/2 | 2 1/8 | 2 | 2 1/8 |
| CB -1014 | 9.3 | 6 19/32 | 3 1/32 | 2 1/2 | 1 1/2 | 1 1/8-12 | 8 1/2 | 1 | 4 | 2 5/8 | 2 1/2 | 2 1/2 |
| CB -1016 | 10.6 | 7 1/2 | 3 1/32 | 3 | 1 1/2 | 1 1/4-12 | 9 1/2 | 1 | 4 1/4 | 2 7/8 | 2 3/4 | 2 3/4 |
| CB -1020 | 13.6 | 9 5/8 | 4 1/16 | 3 1/2 | 2 | 1 3/4-12 | 12 5/8 | 1 11/16 | 5 11/16 | 3 5/8 | 3 1/2 | 3 1/2 |
| CB -1024 | 16.2 | 11 1/2 | 4 9/16 | 4 | 2 1/4 | 2-12 | 14 7/8 | 1 15/16 | 6 7/16 | 4 | 4 | 4 |
Dimensions in inches.

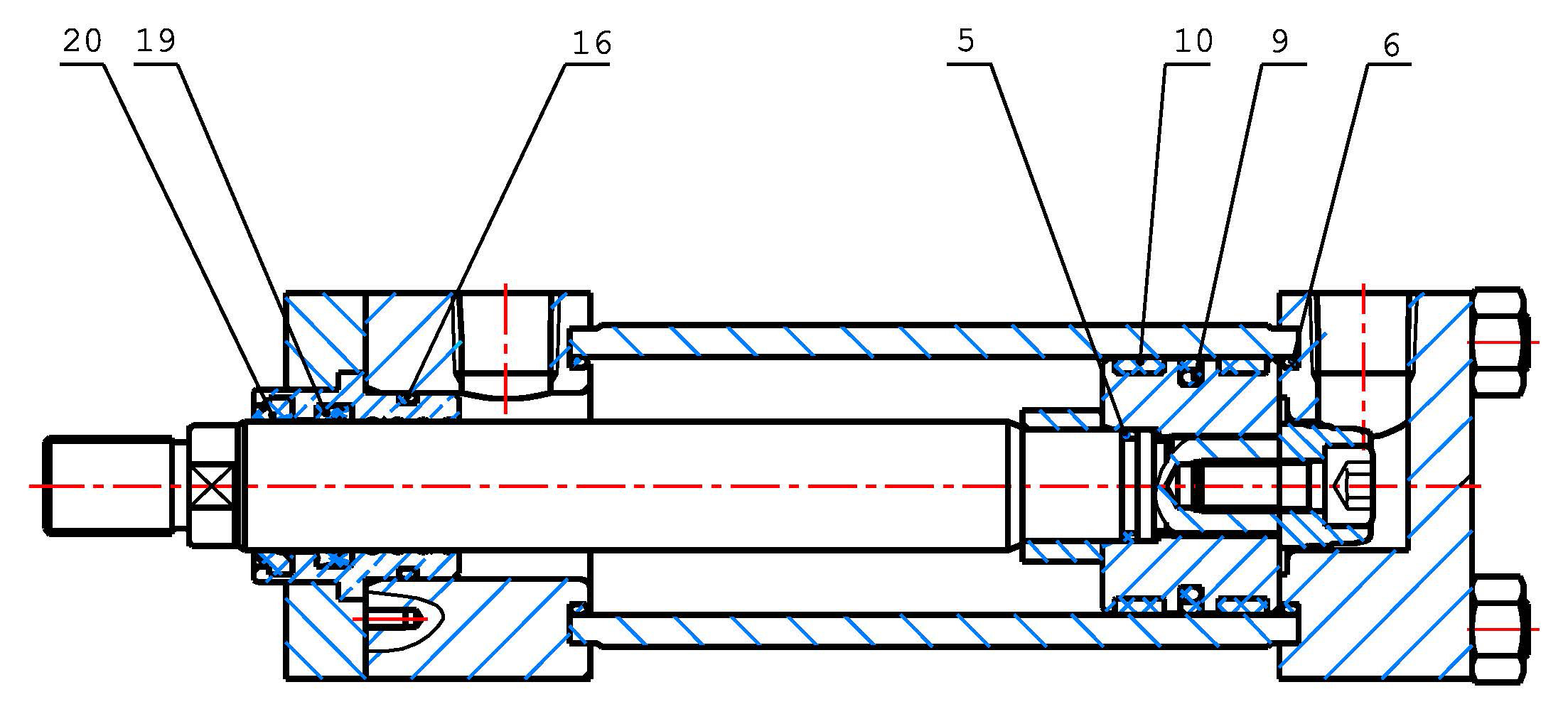

| Part no. | Description | Parker seal type |
|---|---|---|
| 20 | Rod wiper | SHD |
| 19 | Rod seal | BPP - B PolyPak |
| 10 | Wear ring * | 0401 PDT |
| 16 | Rod bushing O-ring | 4300 568 |
| 6 | Tube O-ring (2) | 4300 568 |
| 9 | Piston seal | OE |
| 5 | Piston O-ring | 4300 568 |
| Bore | Quantity |
|---|---|
| 1 1/2 - 3 1/4 | 1 |
| 4 - 10 | 2 |
| 12 - 20 | 4 |
| Model no. | Description |
|---|---|
| SK-H01500063 | Seal kit, bore 1 1/2" x rod 5/8" |
| SK-H01500100 | Seal kit, bore 1 1/2" x rod 1" |
| SK-H02000100 | Seal kit, bore 2" x rod 1" |
| SK-H02000138 | Seal kit, bore 2" x rod 1 3/8" |
| SK-H02500100 | Seal kit, bore 2 1/2" x rod 1" |
| SK-H02500138 | Seal kit, bore 2 1/2" x rod 1 3/8" |
| SK-H02500175 | Seal kit, bore 2 1/2" x rod 1 3/4" |
| SK-H03250138 | Seal kit, bore 3 1/4" x rod 1 3/8" |
| SK-H03250175 | Seal kit, bore 3 1/4" x rod 1 3/4" |
| SK-H03250200 | Seal kit, bore 3 1/4" x rod 2" |
| SK-H04000175 | Seal kit, bore 4" x rod 1 3/4" |
| SK-H04000200 | Seal kit, bore 4" x rod 2" |
| SK-H04000250 | Seal kit, bore 4" x rod 2 1/2" |
How to order the cylinder
H - MF5 - 3.25 X 1.38 X 25.25 - N - 1 - S - 11 - S
Series
H
Mount
MX1, MX2, MX3, ME5, ME6, MF1, MF2, MF5, MF6, MS2, MS3, MS4, MS7, MT1, MT2, MT4, MP1
Bore
1.50, 2.00, 2.50, 3.25, 4.00, 5.00, 6.00, 7.00, 8.00, 10.00, 12.00, 14.00, 16.00, 18.00, 20.00 inches
Rod
0.63, 1.00, 1.38, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00, 5.50, 7.00, 8.00, 9.00, 10.00 inches
Stroke
In the example, 25.25 inches.
Cushion
- N — None
- H — Head end
- C — Cap end
- B — Both ends
Rod end
- 1 — Male KK
- 2 — Female KK
- 3 — Intermediate male CC
Ports
- S — SAE
- N — NPTF
Port location — 11
In the example, 11 means position 1 at the head end and position 1 at the cap end. The first digit is the head end and the second is the cap end.
Head end: 1, 2, 3, 4
Cap end: 1, 2, 3, 4
Options
- S — Standard
- X — Modified
Every modification must include complete notes or drawings.
Standard specifications
- Nominal pressure: 3000 PSI*
- Bores: 10" to 20"
- Rods: 4 1/2" to 10"
- Mounting styles: 9 standard styles***
- Strokes: available in any practical stroke length
- Cushion: optional at either end or both
- Standard: screwed gland assembly, removable from the outside
- Standard temperature: −10 °F to +200 °F**
* If the pressure is 3000 to 4000 PSI or higher, state it when ordering.
** If the temperature is 200 to 400 °F or higher, state it when ordering.
*** Drawings are supplied for all other mounting styles and specials.

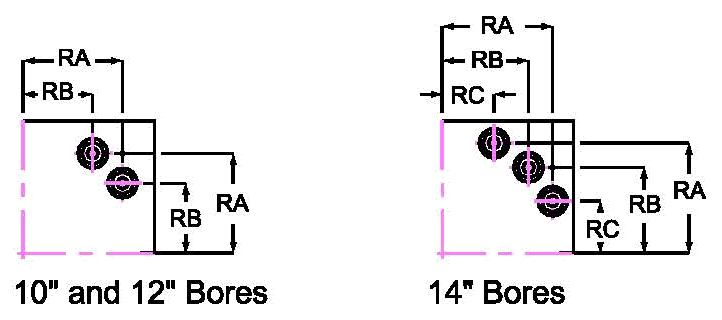

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | FB | R | TF | UF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 12 5/8 | 24 | 2 | 3 11/16 | 3 11/16 | 1 9/32 | 12 1/8 | 8 1/2 | 1 13/16 | 9.62 | 15 7/8 | 19 |
| 12 | 14 7/8 | 24 | 2 1/2 | 4 7/16 | 4 7/16 | 1 13/32 | 14 1/2 | 10 1/8 | 2 1/16 | 11.45 | 18 1/2 | 22 |
| 14 | 17 1/8 | 24 | 2 1/2 | 4 7/8 | 4 7/8 | 1 13/32 | 15 5/8 | 10 7/8 | 2 5/16 | 13.26 | 21 | 25 |
| Bore | MM | KK | A | B −.001/−.005 | C | F | LAF | NA | RD | V | WF | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 4 1/2 | 3 1/4-12 | 4 1/2 | 5.249 | 1 | 1 15/16 | 7 7/16 | 4 3/8 | 8 1/4 | 1/4 | 2 15/16 | 4 3/4 | 16 11/32 |
| 5 | 3 1/2-12 | 5 | 5.749 | 1 | 1 15/16 | 8 3/16 | 4 7/8 | 8 7/8 | 1/4 | 3 3/16 | 5 | 16 19/32 | |
| 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 | 16 19/32 | |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 5/16 | 16 29/32 | |
| 12 | 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 3/8 | 19 3/32 |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 11/16 | 19 13/32 | |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/16 | 19 29/32 | |
| 14 | 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 7/8 | 20 17/32 |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/8 | 21 1/32 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 6 7/8 | 21 17/32 |
| Bore | RA | RB | RC | TIE ROD THREAD |
|---|---|---|---|---|
| 10 | 5.291 | 3.775 | — | 1 1/8-12 |
| 12 | 6.270 | 4.555 | — | 1 1/4-12 |
| 14 | 7.485 | 6.143 | 4.409 | 1 1/4-12 |
* Add the stroke to the dimension marked with an asterisk.

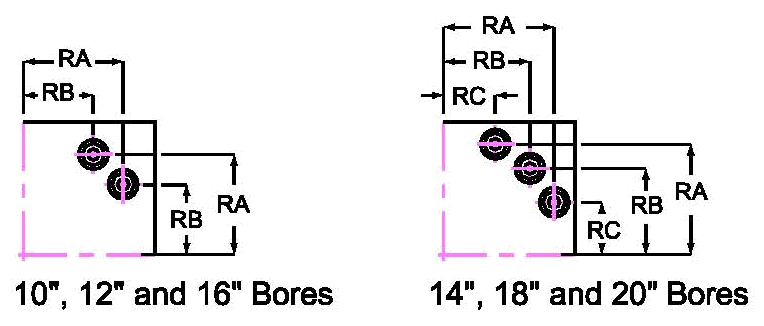

| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | EB | EX | RE | TE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 12 5/8 | 24 | 2 | 3 11/16 | 3 11/16 | 1 9/32 | 12 1/8 | 8 1/2 | 1 5/16 | 16 5/8 | 9.89 | 14.13 |
| 12 | 14 7/8 | 24 | 2 1/2 | 4 7/16 | 4 7/16 | 1 13/32 | 14 1/2 | 10 1/8 | 1 9/16 | 19 3/4 | 11.75 | 16.79 |
| 14 | 17 1/8 | 24 | 2 1/2 | 4 7/8 | 4 7/8 | 1 13/32 | 15 5/8 | 10 7/8 | 1 13/16 | 21 3/4 | 12.90 | 18.43 |
| 16 | 19 | 24 | - | 5 7/8 | 5 7/8 | 1 29/32 | 18 1/8 | 12 1/8 | 1 13/16 | 24 1/2 | 15.28 | 21.03 |
| 18 | 22 | 24 | - | 6 7/8 | 6 7/8 | 1 29/32 | 21 1/8 | 15 1/8 | 2 1/16 | 26 1/2 | 16.45 | 22.65 |
| 20 | 24 | 24 | - | 7 7/8 | 7 7/8 | 1 29/32 | 23 5/8 | 17 5/8 | 2 1/16 | 29 | 18.07 | 24.87 |
| Bore | MM | KK | A | B −.001/−.005 | C | F | LAF | NA | RD | V | WF | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 4 1/2 | 3 1/4-12 | 4 1/2 | 5.249 | 1 | 1 15/16 | 7 7/16 | 4 3/8 | 8 1/4 | 1/4 | 2 15/16 | 4 3/4 | 16 11/32 |
| 5 | 3 1/2-12 | 5 | 5.749 | 1 | 1 15/16 | 8 3/16 | 4 7/8 | 8 7/8 | 1/4 | 3 3/16 | 5 | 16 19/32 | |
| 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 | 16 19/32 | |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 5/16 | 16 29/32 | |
| 12 | 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 3/8 | 19 3/32 |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 11/16 | 19 13/32 | |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/16 | 19 29/32 | |
| 14 | 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 7/8 | 20 17/32 |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/8 | 21 1/32 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 6 7/8 | 21 17/32 | |
| 16 | 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 7 | 24 1/32 |
| 9 | 6 1/2-12 | 9 | 9.999 | 1 | 1 15/16 | 13 1/4 | 8 7/8 | 13 1/2 | 3/8 | 4 1/4 | 7 1/4 | 24 9/32 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 7 1/2 | 24 17/32 | |
| 18 | 9 | 6 1/2-12 | 9 | 9.999 | 1 | 1 15/16 | 13 1/4 | 8 7/8 | 13 1/2 | 3/8 | 4 1/4 | 7 1/4 | 27 9/32 |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 7 1/2 | 27 17/32 | |
| 20 | 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 7 1/2 | 30 1/32 |
| Bore | RA | RB | RC | TIE ROD THREAD |
|---|---|---|---|---|
| 10 | 5.291 | 3.775 | — | 1 1/8-12 |
| 12 | 6.270 | 4.555 | — | 1 1/4-12 |
| 14 | 7.485 | 6.143 | 4.409 | 1 1/4-12 |
| 16 | 8.086 | 6.093 | — | 1 1/2-12 |
| 18 | 9.589 | 7.910 | 5.761 | 1 1/2-12 |
| 20 | 10.437 | 8.750 | 6.649 | 1 1/2-12 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | FB | R | TF | UF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 12 5/8 | 24 | 2 | 3 11/16 | 3 11/16 | 1 9/32 | 12 1/8 | 8 1/2 | 1 13/16 | 9.62 | 15 7/8 | 19 |
| 12 | 14 7/8 | 24 | 2 1/2 | 4 7/16 | 4 7/16 | 1 13/32 | 14 1/2 | 10 1/8 | 2 1/16 | 11.45 | 18 1/2 | 22 |
| 14 | 17 1/8 | 24 | 2 1/2 | 4 7/8 | 4 7/8 | 1 13/32 | 15 5/8 | 10 7/8 | 2 5/16 | 13.26 | 21 | 25 |
| Bore | MM | KK | A | B −.001/−.005 | C | F | LAF | NA | RD | V | WF | Y | XF* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 4 1/2 | 3 1/4-12 | 4 1/2 | 5.249 | 1 | 1 15/16 | 7 7/16 | 4 3/8 | 8 1/4 | 1/4 | 2 15/16 | 4 3/4 | 15 1/16 |
| 5 | 3 1/2-12 | 5 | 5.749 | 1 | 1 15/16 | 8 3/16 | 4 7/8 | 8 7/8 | 1/4 | 3 3/16 | 5 | 15 5/16 | |
| 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 | 15 5/16 | |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 5/16 | 15 5/8 | |
| 12 | 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 3/8 | 17 11/16 |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 11/16 | 18 | |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/16 | 18 1/2 | |
| 14 | 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 7/8 | 19 1/8 |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/8 | 19 5/8 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 6 7/8 | 20 1/8 |
| Bore | RA | RB | RC | TIE ROD THREAD |
|---|---|---|---|---|
| 10 | 5.291 | 3.775 | — | 1 1/8-12 |
| 12 | 6.270 | 4.555 | — | 1 1/4-12 |
| 14 | 7.485 | 6.143 | 4.409 | 1 1/4-12 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | EB | EX | RE | TE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 12 5/8 | 24 | 2 | 3 11/16 | 3 11/16 | 1 9/32 | 12 1/8 | 8 1/2 | 1 5/16 | 16 5/8 | 9.89 | 14.13 |
| 12 | 14 7/8 | 24 | 2 1/2 | 4 7/16 | 4 7/16 | 1 13/32 | 14 1/2 | 10 1/8 | 1 9/16 | 19 3/4 | 11.75 | 16.79 |
| 14 | 17 1/8 | 24 | 2 1/2 | 4 7/8 | 4 7/8 | 1 13/32 | 15 5/8 | 10 7/8 | 1 13/16 | 21 3/4 | 12.90 | 18.43 |
| 16 | 19 | 24 | - | 5 7/8 | 5 7/8 | 1 29/32 | 18 1/8 | 12 1/8 | 1 13/16 | 24 1/2 | 15.28 | 21.03 |
| 18 | 22 | 24 | - | 6 7/8 | 6 7/8 | 1 29/32 | 21 1/8 | 15 1/8 | 2 1/16 | 26 1/2 | 16.45 | 22.65 |
| 20 | 24 | 24 | - | 7 7/8 | 7 7/8 | 1 29/32 | 23 5/8 | 17 5/8 | 2 1/16 | 29 | 18.07 | 24.87 |
| Bore | MM | KK | A | B −.001/−.005 | C | F | LAF | NA | RD | V | WF | Y | XF* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 4 1/2 | 3 1/4-12 | 4 1/2 | 5.249 | 1 | 1 15/16 | 7 7/16 | 4 3/8 | 8 1/4 | 1/4 | 2 15/16 | 4 3/4 | 15 1/16 |
| 5 | 3 1/2-12 | 5 | 5.749 | 1 | 1 15/16 | 8 3/16 | 4 7/8 | 8 7/8 | 1/4 | 3 3/16 | 5 | 15 5/16 | |
| 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 | 15 5/16 | |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 5/16 | 15 5/8 | |
| 12 | 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 3/8 | 17 11/16 |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 11/16 | 18 | |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/16 | 18 1/2 | |
| 14 | 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 7/8 | 19 1/8 |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/8 | 19 5/8 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 6 7/8 | 20 1/8 | |
| 16 | 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 7 | 22 1/8 |
| 9 | 6 1/2-12 | 9 | 9.999 | 1 | 1 15/16 | 13 1/4 | 8 7/8 | 13 1/2 | 3/8 | 4 1/4 | 7 1/4 | 22 3/8 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 7 1/2 | 22 5/8 | |
| 18 | 9 | 6 1/2-12 | 9 | 9.999 | 1 | 1 15/16 | 13 1/4 | 8 7/8 | 13 1/2 | 3/8 | 4 1/4 | 7 1/4 | 25 3/8 |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 7 1/2 | 25 5/8 | |
| 20 | 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 7 1/2 | 28 1/8 |
| Bore | RA | RB | RC | TIE ROD THREAD |
|---|---|---|---|---|
| 10 | 5.291 | 3.775 | — | 1 1/8-12 |
| 12 | 6.270 | 4.555 | — | 1 1/4-12 |
| 14 | 7.485 | 6.143 | 4.409 | 1 1/4-12 |
| 16 | 8.086 | 6.093 | — | 1 1/2-12 |
| 18 | 9.589 | 7.910 | 5.761 | 1 1/2-12 |
| 20 | 10.437 | 8.750 | 6.649 | 1 1/2-12 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | SB | SS* | ST | SU | SW | TS | US |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 12 5/8 | 24 | 2 | 3 11/16 | 3 11/16 | 1 9/32 | 12 1/8 | 8 1/2 | 1 9/16 | 8 7/8 | 2 1/4 | 3 1/2 | 1 5/8 | 15 7/8 | 19 1/8 |
| 12 | 14 7/8 | 24 | 2 1/2 | 4 7/16 | 4 7/16 | 1 13/32 | 14 1/2 | 10 1/8 | 1 9/16 | 10 1/2 | 3 | 4 1/4 | 2 | 18 7/8 | 22 7/8 |
| 14 | 17 1/8 | 24 | 2 1/2 | 4 7/8 | 4 7/8 | 1 13/32 | 15 5/8 | 10 7/8 | 2 5/16 | 11 1/8 | 4 | 4 3/4 | 2 1/4 | 21 5/8 | 26 1/8 |
| Bore | MM | KK | A | B −.001/−.005 | C | F | LAF | NA | RD | V | WF | Y | XS | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 4 1/2 | 3 1/4-12 | 4 1/2 | 5.249 | 1 | 1 15/16 | 7 7/16 | 4 3/8 | 8 1/4 | 1/4 | 2 15/16 | 4 3/4 | 4 9/16 | 16 11/32 |
| 5 | 3 1/2-12 | 5 | 5.749 | 1 | 1 15/16 | 8 3/16 | 4 7/8 | 8 7/8 | 1/4 | 3 3/16 | 5 | 4 13/16 | 16 19/32 | |
| 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 | 4 13/16 | 16 19/32 | |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 5/16 | 5 1/8 | 16 29/32 | |
| 12 | 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 3/8 | 5 3/16 | 19 3/32 |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 11/16 | 5 1/2 | 19 13/32 | |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/16 | 6 | 19 29/32 | |
| 14 | 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 7/8 | 5 3/4 | 20 17/32 |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/8 | 6 1/4 | 21 1/32 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 6 7/8 | 6 3/4 | 21 17/32 |
| Bore | RA | RB | RC | TIE ROD THREAD |
|---|---|---|---|---|
| 10 | 5.291 | 3.775 | — | 1 1/8-12 |
| 12 | 6.270 | 4.555 | — | 1 1/4-12 |
| 14 | 7.485 | 6.143 | 4.409 | 1 1/4-12 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | CB | CD +.001/−.003 | CW | L | LR | M | MR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 12 5/8 | 24 | 2 | 3 11/16 | 3 11/16 | 1 9/32 | 12 1/8 | 8 1/2 | 4 | 3.500 | 2 | 4 | 3 3/8 | 3 1/2 | 3 1/2 |
| 12 | 14 7/8 | 24 | 2 1/2 | 4 7/16 | 4 7/16 | 1 13/32 | 14 1/2 | 10 1/8 | 4 1/2 | 4.000 | 2 1/4 | 4 1/2 | 3 7/8 | 4 | 4 |
| 14 | 17 1/8 | 24 | 2 1/2 | 4 7/8 | 4 7/8 | 1 13/32 | 15 5/8 | 10 7/8 | 6 | 5.000 | 3 | 5 3/4 | 4 3/16 | 5 | 5 |
| 16 | 19 | 24 | - | 5 7/8 | 5 7/8 | 1 29/32 | 18 1/8 | 12 1/8 | 7 | 6.000 | 3 1/2 | 7 | 6 1/4 | 6 | 6 |
| 18 | 22 | 24 | - | 6 7/8 | 6 7/8 | 1 29/32 | 21 1/8 | 15 1/8 | 8 | 6.500 | 4 | 7 5/8 | 6 3/4 | 6 1/2 | 6 1/2 |
| 20 | 24 | 24 | - | 7 7/8 | 7 7/8 | 1 29/32 | 23 5/8 | 17 5/8 | 9 | 7.500 | 4 1/2 | 8 3/4 | 7 3/4 | 7 1/2 | 7 1/2 |
| Bore | MM | KK | A | B −.001/−.005 | C | F | LAF | NA | RD | V | WF | Y | XC* | ZC* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 4 1/2 | 3 1/4-12 | 4 1/2 | 5.249 | 1 | 1 15/16 | 7 7/16 | 4 3/8 | 8 1/4 | 1/4 | 2 15/16 | 4 3/4 | 19 1/16 | 22 9/16 |
| 5 | 3 1/2-12 | 5 | 5.749 | 1 | 1 15/16 | 8 3/16 | 4 7/8 | 8 7/8 | 1/4 | 3 3/16 | 5 | 19 5/16 | 22 13/16 | |
| 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 | 19 5/16 | 22 13/16 | |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 5/16 | 19 5/8 | 23 1/8 | |
| 12 | 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 3/8 | 22 3/16 | 26 3/16 |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 11/16 | 22 1/2 | 26 1/2 | |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/16 | 23 | 27 | |
| 14 | 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 7/8 | 24 7/8 | 29 7/8 |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/8 | 25 3/8 | 30 3/8 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 6 7/8 | 25 7/8 | 30 7/8 | |
| 16 | 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 7 | 29 1/8 | 35 1/8 |
| 9 | 6 1/2-12 | 9 | 9.999 | 1 | 1 15/16 | 13 1/4 | 8 7/8 | 13 1/2 | 3/8 | 4 1/4 | 7 1/4 | 29 3/8 | 35 3/8 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 7 1/2 | 29 5/8 | 35 5/8 | |
| 18 | 9 | 6 1/2-12 | 9 | 9.999 | 1 | 1 15/16 | 13 1/4 | 8 7/8 | 13 1/2 | 3/8 | 4 1/4 | 7 1/4 | 33 | 39 1/2 |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 7 1/2 | 33 1/4 | 39 3/4 | |
| 20 | 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 7 1/2 | 36 7/8 | 44 3/8 |
| Bore | RA | RB | RC | TIE ROD THREAD |
|---|---|---|---|---|
| 10 | 5.291 | 3.775 | — | 1 1/8-12 |
| 12 | 6.270 | 4.555 | — | 1 1/4-12 |
| 14 | 7.485 | 6.143 | 4.409 | 1 1/4-12 |
| 16 | 8.086 | 6.093 | — | 1 1/2-12 |
| 18 | 9.589 | 7.910 | 5.761 | 1 1/2-12 |
| 20 | 10.437 | 8.750 | 6.649 | 1 1/2-12 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | MAX PRESSURE PSI | TD −.000/−.001 | TL | UT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 12 5/8 | 24 | 2 | 3 11/16 | 3 11/16 | 1 9/32 | 12 1/8 | 8 1/2 | 1600 | 3.500 | 3 1/2 | 19 5/8 |
| 12 | 14 7/8 | 24 | 2 1/2 | 4 7/16 | 4 7/16 | 1 13/32 | 14 1/2 | 10 1/8 | 1500 | 4.000 | 4 | 22 7/8 |
| 14 | 17 1/8 | 24 | 2 1/2 | 4 7/8 | 4 7/8 | 1 13/32 | 15 5/8 | 10 7/8 | 1400 | 4.500 | 4 1/2 | 26 1/8 |
| Bore | MM | KK | A | B −.001/−.005 | C | F | LAF | NA | RD | V | WF | Y | XG | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 4 1/2 | 3 1/4-12 | 4 1/2 | 5.249 | 1 | 1 15/16 | 7 7/16 | 4 3/8 | 8 1/4 | 1/4 | 2 15/16 | 4 3/4 | 4 3/4 | 16 11/32 |
| 5 | 3 1/2-12 | 5 | 5.749 | 1 | 1 15/16 | 8 3/16 | 4 7/8 | 8 7/8 | 1/4 | 3 3/16 | 5 | 5 | 16 19/32 | |
| 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 | 5 | 16 19/32 | |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 5/16 | 5 5/16 | 16 29/32 | |
| 12 | 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 3/8 | 5 3/8 | 19 3/32 |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 11/16 | 5 11/16 | 19 13/32 | |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/16 | 6 3/16 | 19 29/32 | |
| 14 | 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 7/8 | 5 15/16 | 20 17/32 |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/8 | 6 7/16 | 21 1/32 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 6 7/8 | 6 15/16 | 21 17/32 |
| Bore | RA | RB | RC | TIE ROD THREAD |
|---|---|---|---|---|
| 10 | 5.291 | 3.775 | — | 1 1/8-12 |
| 12 | 6.270 | 4.555 | — | 1 1/4-12 |
| 14 | 7.485 | 6.143 | 4.409 | 1 1/4-12 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | MAX PRESSURE PSI | TD −.000/−.001 | TL | UT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 12 5/8 | 24 | 2 | 3 11/16 | 3 11/16 | 1 9/32 | 12 1/8 | 8 1/2 | 1600 | 3.500 | 3 1/2 | 19 5/8 |
| 12 | 14 7/8 | 24 | 2 1/2 | 4 7/16 | 4 7/16 | 1 13/32 | 14 1/2 | 10 1/8 | 1500 | 4.000 | 4 | 22 7/8 |
| 14 | 17 1/8 | 24 | 2 1/2 | 4 7/8 | 4 7/8 | 1 13/32 | 15 5/8 | 10 7/8 | 1400 | 4.500 | 4 1/2 | 26 1/8 |
| Bore | MM | KK | A | B −.001/−.005 | C | F | LAF | NA | RD | V | WF | Y | XJ | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 4 1/2 | 3 1/4-12 | 4 1/2 | 5.249 | 1 | 1 15/16 | 7 7/16 | 4 3/8 | 8 1/4 | 1/4 | 2 15/16 | 4 3/4 | 13 3/8 | 16 11/32 |
| 5 | 3 1/2-12 | 5 | 5.749 | 1 | 1 15/16 | 8 3/16 | 4 7/8 | 8 7/8 | 1/4 | 3 3/16 | 5 | 13 15/16 | 16 19/32 | |
| 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 | 13 5/8 | 16 19/32 | |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 5/16 | 13 5/8 | 16 29/32 | |
| 12 | 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 3/8 | 15 1/2 | 19 3/32 |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 11/16 | 16 5/16 | 19 13/32 | |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/16 | 15 13/16 | 19 29/32 | |
| 14 | 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 7/8 | 16 11/16 | 20 17/32 |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/8 | 17 11/16 | 21 1/32 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 6 7/8 | 17 3/16 | 21 17/32 |
| Bore | RA | RB | RC | TIE ROD THREAD |
|---|---|---|---|---|
| 10 | 5.291 | 3.775 | — | 1 1/8-12 |
| 12 | 6.270 | 4.555 | — | 1 1/4-12 |
| 14 | 7.485 | 6.143 | 4.409 | 1 1/4-12 |
* Add the stroke to the dimension marked with an asterisk.
| Bore | E | EE (SAE) | EE (NPTF) | G | J | K | LB* | P* | MAX PRESSURE PSI | TD −.000/−.001 | TL | TM | TY | UM | UW |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 12 5/8 | 24 | 2 | 3 11/16 | 3 11/16 | 1 9/32 | 12 1/8 | 8 1/2 | 1600 | 3.500 | 3 1/2 | 14 | 13 | 21 | 17 1/2 |
| 12 | 14 7/8 | 24 | 2 1/2 | 4 7/16 | 4 7/16 | 1 13/32 | 14 1/2 | 10 1/8 | 1500 | 4.000 | 4 | 16 1/2 | 15 1/2 | 24 1/2 | 20 3/4 |
| 14 | 17 1/8 | 24 | 2 1/2 | 4 7/8 | 4 7/8 | 1 13/32 | 15 5/8 | 10 7/8 | 1400 | 4.500 | 4 1/2 | 19 1/2 | 19 1/4 | 28 1/2 | 24 3/4 |
| Bore | MM | KK | A | B −.001/−.005 | C | F | LAF | NA | RD | V | WF | Y | ZB* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 4 1/2 | 3 1/4-12 | 4 1/2 | 5.249 | 1 | 1 15/16 | 7 7/16 | 4 3/8 | 8 1/4 | 1/4 | 2 15/16 | 4 3/4 | 16 11/32 |
| 5 | 3 1/2-12 | 5 | 5.749 | 1 | 1 15/16 | 8 3/16 | 4 7/8 | 8 7/8 | 1/4 | 3 3/16 | 5 | 16 19/32 | |
| 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 | 16 19/32 | |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 5/16 | 16 29/32 | |
| 12 | 5 1/2 | 4-12 | 5 1/2 | 6.249 | 1 | 1 15/16 | 8 11/16 | 5 3/8 | 9 3/8 | 1/4 | 3 3/16 | 5 3/8 | 19 3/32 |
| 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 11/16 | 19 13/32 | |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/16 | 19 29/32 | |
| 14 | 7 | 5-12 | 7 | 7.999 | 1 | 1 15/16 | 10 1/2 | 6 7/8 | 10 1/2 | 3/8 | 3 1/2 | 5 7/8 | 20 17/32 |
| 8 | 5 3/4-12 | 8 | 8.999 | 1 | 1 15/16 | 12 | 7 7/8 | 12 1/2 | 3/8 | 4 | 6 3/8 | 21 1/32 | |
| 10 | 7 1/4-12 | 10 | 10.999 | 1 | 1 15/16 | 14 1/2 | 9 7/8 | 14 1/2 | 3/8 | 4 1/2 | 6 7/8 | 21 17/32 |
| Bore | RA | RB | RC | TIE ROD THREAD |
|---|---|---|---|---|
| 10 | 5.291 | 3.775 | — | 1 1/8-12 |
| 12 | 6.270 | 4.555 | — | 1 1/4-12 |
| 14 | 7.485 | 6.143 | 4.409 | 1 1/4-12 |
* Add the stroke to the dimension marked with an asterisk.
** Dimension XI must be specified by the customer.
