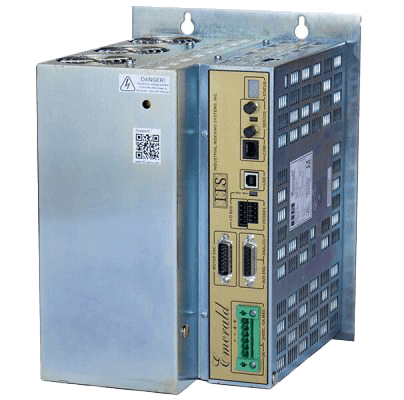

Emerald Servo Drives
| Emerald Servo Drives |
|---|
| Description |
| Cost-effective servo drives utilizing the latest servo technology for precise motion control. Available in seven size ranges: 5, 10, 20, 40, 60 amp @ 220 VAC and 25, 50 amp @ 440 VAC. Compatible with motors from 400W to 21kW. |
| Features |
| SERCOS II Automation Network with fiber optic cable |
| USB port for easy interfacing to laptop PC for diagnostics |
| Seven-segment status display |
| Watchdog timer with safety loop contact for external shutdown |
| High-speed DSP microprocessor for position, velocity, and torque control |
| Selectable current loop switching frequency (4, 8, or 16 kHz) |
| Operates at temperatures up to 55°C at full rated power |
| Analog I/O: +/- 10V input, PWM style output |
| Auxiliary encoder: ABZ RS422 interface, optional resolver |
| Two high-speed position trap inputs for web/product registration |
| Applications |
| Food production |
| Medical applications |
| Oil refining |
| Explosive liquid, dust, and vapor atmospheres |
| Submersible assemblies |
| Certifications: UL, cUL, ATEX, IECEx, FDA |
