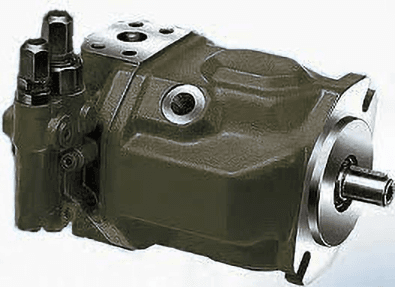

Variable Displacement piston pumps
Download PDF
| A10V series Pumps | |||
|---|---|---|---|
| Displacement | Pressure | Peak Pressure | Speed |
| cc / cu/in² | PSI | PSI | RPM |
| 18 / 1.10 | 4,000 | 5,000 | 3,300 |
| 28 / 1.17 | 4,000 | 5,000 | 3,000 |
| 45 / 2.75 | 4,000 | 5,000 | 2,600 |
| 71 / 4.33 | 4,000 | 5,000 | 2,200 |
| 100 / 6.10 | 4,000 | 5,000 | 2,000 |
| 140 / 8.54 | 4,000 | 5,000 | 1,800 |
Fixed Displacement Radial Piston Pumps
Download PDF
| High Pressure Pumps | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series | Pistons | 0 psi | 100 psi | 1,000 psi | 2,000 psi | 3,000 psi | 4,000 psi | 5,000 psi | 6,000 psi | 7,000 psi | 8,000 psi | 9,000 psi | 10,000 psi |
| GPM at 1,800 RPM | |||||||||||||
| L20 | 7 | 1.4 | 1.35 | 1.30 | 1.25 | 1.22* | 1.20* | ||||||
| H20 | 7 | 1.05 | 0.98 | 0.92 | 0.89 | 0.86 | 0.83 | 0.79 | 0.75* | 0.73* | 0.70* | 0.67* | |
| GPM at 1,800 RPM | |||||||||||||
| L80 | 7 | 6.10 | 5.80 | 5.60 | 5.40* | ||||||||
| M80 | 7 | 4 | 3.70 | 3.50 | 3.40 | 3.20* | 3.10* | ||||||
| H80 | 7 | 2.50 | 2.30 | 2.20 | 2.10 | 2.00 | 1.90 | 1.85 | 1.80* | 1.75* | 1.70* | 1.65* | |
| GPM at 1,200 RPM | |||||||||||||
| C4 | 14 | 6.70 | 6.50 | 6.20 | 6.90 | 5.70* | 5.50* | 5.40* | |||||
| C5 | 14 | 8.20 | 7.80 | 7.50 | 7.20 | 6.90 | 6.60 | 6.20* | 6.00* | 5.60* | 5.30* | 5.00* | |
| C11 | 14 | 12.80 | 12.40 | 12.00 | 11.50 | 11.00 | 10.50 | 10.10* | 9.70* | 9.30* | 8.90* | 8.50* | |
| * intermittent | |||||||||||||
Not sure what hydraulic pump to select? Send us your technical requirements and we will work with you to select the proper pump for your application.
